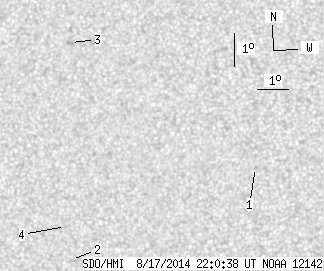

SDO HMI 2014-08-17 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.77 | 0.00 | 2.51 | 7.58 | 27.73 | -19.15 | 86.66 | 0.3297 | -410.8 | -495.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.51 | 6.29 | 32.53 | -14.35 | 91.10 | 0.2474 | -886.0 | -706.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 3.30 | 26.73 | -20.14 | 98.81 | 0.3494 | 17.0 | 10.4 | |
| 0.00 | 2.61 | 0.00 | 1.38 | 9.88 | 26.43 | -20.45 | 79.85 | 0.3512 | -757.0 | -642.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 4.30 | 26.52 | -20.36 | 95.90 | 0.3503 | -17.0 | -17.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
