groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12139 60.85 285.80 31.07 145.28 13.97 56.87 10.55 306.92 0.2247 -344.0 -192.7


previous   or   next   observation for the same group / back to the solar disc

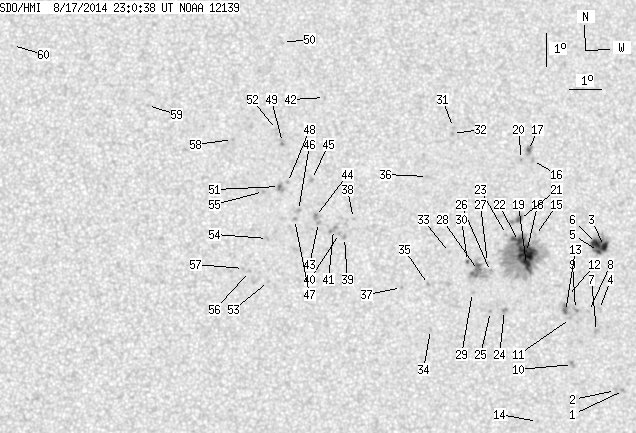

SDO HMI 2014-08-17 23:00:38 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.80 0.00 0.92 9.54 60.71 14.39 281.96 0.2516 -907.0 -751.9
2 0.00 2.25 0.00 1.15 9.55 60.46 14.14 282.16 0.2475 -715.0 -698.1
3 5.58 26.29 2.87 13.51 13.94 60.34 14.02 298.60 0.2690 -1007.3 -520.8
4 0.00 2.43 0.00 1.24 12.02 60.07 13.75 292.19 0.2521 -647.0 -526.8
5 2.61 -3.00 1.34 -3.00 13.79 60.14 13.82 298.42 0.2649 -1066.2 999999
6 8.10 -3.00 4.16 -3.00 14.04 60.09 13.77 299.34 0.2660 -1187.5 999999
7 0.00 2.70 0.00 1.38 11.36 59.94 13.62 289.81 0.2464 -744.0 -604.2
8 0.00 1.17 0.00 0.60 11.97 59.72 13.39 292.48 0.2463 -673.0 -520.5
9 0.00 2.25 0.00 1.15 12.05 59.31 12.98 293.34 0.2404 -1049.0 -845.5
10 0.00 2.52 0.00 1.28 10.38 59.13 12.81 286.77 0.2288 -931.0 -832.9
11 0.00 1.26 0.00 0.64 11.78 59.14 12.81 292.53 0.2361 -928.0 -710.4
12 0.00 1.53 0.00 0.78 12.45 59.07 12.75 295.27 0.2394 -764.0 -619.5
13 1.17 5.58 0.60 2.84 11.99 58.99 12.66 293.62 0.2351 -1157.2 -900.1
14 0.00 0.90 0.00 0.46 8.67 57.97 11.64 280.10 0.2036 -751.0 -572.6
15 0.00 1.62 0.00 0.83 14.34 58.15 11.83 304.02 0.2407 -681.0 -546.6
16 0.00 2.43 0.00 1.25 16.64 58.19 11.87 311.40 0.2639 -845.0 -678.6
17 0.99 5.22 0.51 2.68 16.95 58.08 11.76 312.57 0.2659 -1015.9 -852.6
18 22.42 135.93 11.41 69.16 13.82 57.84 11.51 302.83 0.2317 -1256.1 -456.7
19 8.55 -18.00 4.35 -18.00 13.46 57.82 11.49 301.48 0.2283 -1186.3 999999
20 0.00 1.17 0.00 0.60 16.68 57.84 11.51 312.35 0.2599 -1003.0 -804.5
21 2.07 7.47 1.06 3.81 14.84 57.67 11.34 306.85 0.2387 -950.6 -792.8
22 8.10 -18.00 4.13 -18.00 14.17 57.60 11.28 304.62 0.2314 -1043.5 999999
23 0.00 1.17 0.00 0.60 14.39 57.23 10.90 306.30 0.2284 -649.0 -523.9
24 0.00 2.88 0.00 1.46 12.07 57.06 10.73 297.38 0.2060 -936.0 -727.2
25 0.00 0.90 0.00 0.46 12.05 56.62 10.29 298.24 0.1992 -893.0 -747.9
26 0.00 1.80 0.00 0.91 13.27 56.67 10.34 303.35 0.2101 -310.0 -348.7
27 0.00 1.17 0.00 0.59 13.55 56.58 10.26 304.67 0.2115 -563.0 -357.3
28 0.00 21.16 0.00 10.71 13.31 56.29 9.96 304.46 0.2051 929.0 456.6
29 0.00 1.17 0.00 0.59 12.64 56.07 9.75 302.17 0.1960 744.0 657.2
30 0.63 1.62 0.32 0.82 13.59 55.95 9.63 306.50 0.2031 721.3 591.5
31 0.00 1.17 0.00 0.60 17.71 55.70 9.38 320.93 0.2474 -605.0 -489.6
32 0.00 1.17 0.00 0.60 17.53 55.66 9.34 320.56 0.2446 -883.0 -722.0
33 0.00 1.17 0.00 0.59 13.88 55.39 9.07 309.26 0.1985 -632.0 -540.9
34 0.00 1.08 0.00 0.54 11.54 54.71 8.39 300.54 0.1667 786.0 628.1
35 0.00 1.17 0.00 0.59 12.91 54.70 8.37 307.31 0.1792 -843.0 -654.1
36 0.00 1.17 0.00 0.59 16.22 54.80 8.47 319.45 0.2186 -787.0 -610.0
37 0.00 1.17 0.00 0.59 12.84 53.84 7.52 309.87 0.1670 842.0 608.8
38 0.00 1.08 0.00 0.54 14.97 52.40 6.07 324.46 0.1767 684.0 466.9
39 0.00 1.80 0.00 0.90 14.39 52.10 5.77 323.79 0.1657 896.0 786.2
40 0.00 1.62 0.00 0.81 14.51 51.95 5.62 324.96 0.1659 993.0 775.3
41 0.00 3.69 0.00 1.85 14.64 51.76 5.43 326.29 0.1658 915.0 868.7
42 0.00 1.08 0.00 0.55 18.71 51.59 5.27 337.23 0.2257 642.0 534.3
43 0.00 1.08 0.00 0.54 14.86 51.29 4.97 329.31 0.1648 999.0 826.7
44 0.00 3.06 0.00 1.54 15.04 51.20 4.88 330.34 0.1667 1161.0 939.5
45 0.00 2.25 0.00 1.13 16.18 51.10 4.78 333.96 0.1831 896.0 743.6
46 0.00 2.70 0.00 1.36 15.23 50.67 4.35 333.62 0.1653 996.0 804.2
47 0.00 1.80 0.00 0.90 14.96 50.54 4.21 333.54 0.1601 1047.0 869.5
48 0.00 1.08 0.00 0.54 16.09 50.34 4.02 337.47 0.1764 901.0 735.2
49 0.00 2.25 0.00 1.14 17.33 50.21 3.89 340.57 0.1954 853.0 848.7
50 0.00 1.71 0.00 0.87 20.43 50.29 3.96 344.68 0.2462 840.0 533.3
51 0.63 5.22 0.32 2.63 15.97 50.09 3.76 338.50 0.1729 1065.4 820.3
52 0.00 1.44 0.00 0.73 17.73 50.03 3.70 342.08 0.2009 639.0 459.2
53 0.00 0.99 0.00 0.49 13.07 49.69 3.37 332.49 0.1244 973.0 693.3
54 0.00 1.62 0.00 0.81 14.38 49.68 3.36 336.85 0.1449 816.0 655.7
55 0.00 1.71 0.00 0.86 15.82 49.58 3.25 340.88 0.1674 1060.0 794.9
56 0.00 1.53 0.00 0.76 13.38 49.10 2.78 337.74 0.1250 832.0 682.6
57 0.00 0.99 0.00 0.49 13.47 48.92 2.59 339.36 0.1253 836.0 595.4
58 0.00 0.90 0.00 0.45 17.43 48.62 2.30 348.33 0.1898 703.0 551.4
59 0.00 1.08 0.00 0.55 18.49 45.92 -0.41 1.90 0.2041 809.0 639.9
60 0.00 0.63 0.00 0.32 20.34 41.54 -4.78 18.41 0.2487 636.0 473.0


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
