SDO HMI 2014-08-17 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.52 | 383.91 | 46.03 | 207.42 | 16.25 | 24.66 | -21.66 | 63.50 | 0.3957 | -5.0 | -63.3 | |
|
previous
or next observation for the same group /

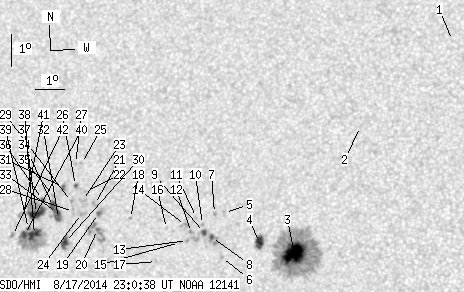

back to the solar disc SDO HMI 2014-08-17 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.14 | 22.68 | 33.03 | -13.29 | 37.44 | 0.3504 | -9.0 | -11.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 19.90 | 30.22 | -16.11 | 48.41 | 0.3503 | 2.0 | -0.2 | |
| 30.25 | 185.08 | 15.93 | 97.41 | 15.91 | 28.40 | -17.92 | 60.96 | 0.3399 | -1394.3 | -434.3 | |
| 7.11 | 9.81 | 3.77 | 5.21 | 16.21 | 27.21 | -19.11 | 61.58 | 0.3591 | -962.0 | -588.1 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 17.09 | 25.94 | -20.39 | 60.80 | 0.3831 | -472.0 | -478.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 15.70 | 25.99 | -20.34 | 64.13 | 0.3734 | -741.0 | -562.8 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 17.04 | 25.60 | -20.72 | 61.25 | 0.3875 | -804.0 | -626.2 | |
| 1.26 | 16.38 | 0.68 | 8.79 | 16.30 | 25.59 | -20.74 | 63.04 | 0.3829 | -1021.2 | -749.4 | |
| 1.62 | -8.00 | 0.87 | -8.00 | 16.45 | 25.33 | -20.99 | 62.94 | 0.3874 | -1010.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.69 | 25.24 | -21.09 | 62.46 | 0.3903 | -878.0 | -681.2 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 16.90 | 25.01 | -21.32 | 62.19 | 0.3949 | -520.0 | -439.2 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 16.43 | 24.89 | -21.43 | 63.40 | 0.3936 | -887.0 | -747.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.18 | 24.79 | -21.54 | 64.09 | 0.3937 | -745.0 | -533.0 | |
| 0.00 | 4.05 | 0.00 | 2.19 | 16.63 | 24.67 | -21.66 | 63.12 | 0.3981 | -798.0 | -557.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 16.10 | 24.52 | -21.80 | 64.50 | 0.3970 | -643.0 | -482.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 16.52 | 24.03 | -22.29 | 63.97 | 0.4065 | -499.0 | -359.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 15.49 | 23.81 | -22.52 | 66.54 | 0.4040 | -531.0 | -410.7 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.77 | 22.76 | -23.56 | 64.45 | 0.4260 | -572.0 | -497.8 | |
| 1.08 | 4.50 | 0.60 | 2.48 | 16.87 | 21.63 | -24.69 | 65.09 | 0.4426 | 1100.6 | 859.3 | |
| 0.63 | 18.54 | 0.35 | 10.22 | 16.38 | 21.67 | -24.66 | 66.12 | 0.4396 | 1188.3 | 873.6 | |
| 0.00 | 2.16 | 0.00 | 1.20 | 17.14 | 21.46 | -24.87 | 64.65 | 0.4465 | 890.0 | 788.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 17.53 | 21.08 | -25.24 | 64.12 | 0.4538 | 745.0 | 648.7 | |
| 0.00 | 2.97 | 0.00 | 1.65 | 17.25 | 21.02 | -25.30 | 64.75 | 0.4532 | 737.0 | 762.5 | |
| 0.00 | 4.77 | 0.00 | 2.65 | 16.84 | 21.04 | -25.28 | 65.57 | 0.4508 | 923.0 | 679.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 18.38 | 20.81 | -25.51 | 62.57 | 0.4624 | 702.0 | 585.9 | |
| 0.90 | 1.80 | 0.50 | 1.00 | 17.70 | 20.71 | -25.62 | 64.05 | 0.4600 | 916.9 | 790.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 18.37 | 20.60 | -25.72 | 62.75 | 0.4652 | 717.0 | 605.8 | |
| 0.00 | 2.52 | 0.00 | 1.40 | 16.89 | 20.75 | -25.57 | 65.67 | 0.4551 | 576.0 | 596.9 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 17.20 | 20.64 | -25.69 | 65.12 | 0.4583 | 841.0 | 739.8 | |
| 4.95 | 8.19 | 2.75 | 4.55 | 15.93 | 20.57 | -25.75 | 67.82 | 0.4530 | 1029.4 | 747.4 | |
| 1.17 | 2.52 | 0.65 | 1.41 | 17.61 | 20.29 | -26.03 | 64.51 | 0.4653 | 889.4 | 726.8 | |
| 1.89 | 14.13 | 1.05 | 7.89 | 16.65 | 20.26 | -26.06 | 66.50 | 0.4609 | 1023.5 | 796.4 | |
| 4.05 | -32.00 | 2.26 | -32.00 | 16.80 | 20.20 | -26.12 | 66.22 | 0.4625 | 1068.4 | 999999 | |
| 4.23 | -32.00 | 2.37 | -32.00 | 17.01 | 20.03 | -26.29 | 65.91 | 0.4659 | 1014.1 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.06 | 17.35 | 19.98 | -26.35 | 65.26 | 0.4683 | 682.0 | 570.5 | |
| 0.90 | 1.80 | 0.51 | 1.01 | 17.21 | 19.61 | -26.71 | 65.79 | 0.4728 | 720.9 | 570.1 | |
| 11.61 | 29.80 | 6.52 | 16.75 | 16.77 | 19.46 | -26.86 | 66.77 | 0.4727 | 998.7 | 370.5 | |
| 8.91 | 49.51 | 5.00 | 27.75 | 16.12 | 19.49 | -26.84 | 68.07 | 0.4694 | 1142.8 | 500.9 | |
| 0.72 | -38.00 | 0.40 | -38.00 | 16.29 | 19.25 | -27.07 | 67.86 | 0.4736 | 798.9 | 999999 | |
| 3.24 | -38.00 | 1.82 | -38.00 | 16.10 | 19.14 | -27.19 | 68.31 | 0.4743 | 802.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 16.59 | 18.99 | -27.33 | 67.41 | 0.4785 | 486.0 | 390.2 | |
| 0.00 | 2.07 | 0.00 | 1.17 | 16.05 | 18.72 | -27.61 | 68.65 | 0.4801 | 648.0 | 490.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
