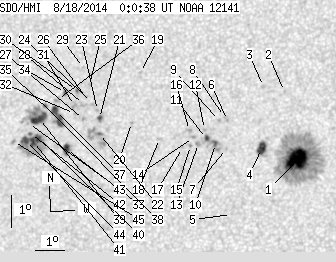

SDO HMI 2014-08-18 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.60 | 381.36 | 46.45 | 205.09 | 16.25 | 24.82 | -20.95 | 62.85 | 0.3854 | -3.6 | -94.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.08 | 188.98 | 15.26 | 99.17 | 15.90 | 28.41 | -17.36 | 60.29 | 0.3318 | -1407.9 | -429.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 17.98 | 27.78 | -17.99 | 55.79 | 0.3568 | -750.0 | -557.5 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 18.11 | 27.06 | -18.71 | 56.42 | 0.3676 | -751.0 | -567.8 | |
| 8.73 | 13.77 | 4.62 | 7.28 | 16.20 | 27.19 | -18.58 | 61.01 | 0.3514 | -909.0 | -294.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 14.14 | 26.38 | -19.39 | 67.30 | 0.3505 | -16.0 | -4.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 17.02 | 25.97 | -19.81 | 60.35 | 0.3744 | -717.0 | -553.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.16 | 26.02 | -19.75 | 62.41 | 0.3678 | -817.0 | -631.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 17.14 | 25.85 | -19.92 | 60.19 | 0.3769 | -661.0 | -531.8 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 17.01 | 25.70 | -20.08 | 60.67 | 0.3781 | -747.0 | -632.1 | |
| 1.44 | 12.87 | 0.77 | 6.88 | 16.30 | 25.64 | -20.13 | 62.46 | 0.3742 | -1028.7 | -787.7 | |
| 1.62 | -10.00 | 0.87 | -10.00 | 16.44 | 25.32 | -20.45 | 62.44 | 0.3797 | -995.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 16.71 | 25.22 | -20.55 | 61.88 | 0.3828 | -851.0 | -661.0 | |
| 0.00 | 2.61 | 0.00 | 1.40 | 16.27 | 25.07 | -20.70 | 63.09 | 0.3822 | -807.0 | -736.6 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 16.45 | 24.88 | -20.89 | 62.84 | 0.3860 | -992.0 | -800.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 16.20 | 24.81 | -20.97 | 63.51 | 0.3856 | -736.0 | -625.8 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 16.66 | 24.72 | -21.05 | 62.50 | 0.3896 | -791.0 | -671.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 16.13 | 24.54 | -21.23 | 63.93 | 0.3889 | -678.0 | -562.9 | |
| 0.00 | 2.25 | 0.00 | 1.22 | 16.37 | 23.73 | -22.04 | 64.08 | 0.4020 | -679.0 | -471.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 18.38 | 22.82 | -22.95 | 60.44 | 0.4273 | -671.0 | -535.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 16.82 | 22.72 | -23.06 | 63.92 | 0.4191 | -723.0 | -546.7 | |
| 1.35 | 3.15 | 0.74 | 1.73 | 16.90 | 21.60 | -24.17 | 64.66 | 0.4354 | 1076.1 | 874.2 | |
| 0.72 | 19.45 | 0.40 | 10.68 | 16.44 | 21.66 | -24.11 | 65.61 | 0.4320 | 1073.8 | 834.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 17.14 | 21.50 | -24.28 | 64.21 | 0.4382 | 941.0 | 762.5 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 17.38 | 21.25 | -24.52 | 63.89 | 0.4429 | 492.0 | 662.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.93 | 21.10 | -24.67 | 62.85 | 0.4481 | 777.0 | 582.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 17.52 | 21.06 | -24.72 | 63.74 | 0.4465 | 741.0 | 642.1 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 16.84 | 21.05 | -24.72 | 65.19 | 0.4429 | 986.0 | 829.6 | |
| 0.00 | 3.06 | 0.00 | 1.69 | 17.30 | 20.98 | -24.79 | 64.26 | 0.4463 | 692.0 | 733.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 18.44 | 20.81 | -24.96 | 62.02 | 0.4551 | 724.0 | 597.8 | |
| 0.45 | 1.44 | 0.25 | 0.80 | 17.72 | 20.68 | -25.10 | 63.61 | 0.4529 | 938.2 | 836.7 | |
| 0.00 | 3.69 | 0.00 | 2.05 | 17.26 | 20.67 | -25.10 | 64.58 | 0.4503 | 798.0 | 709.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.01 | 20.71 | -25.06 | 65.07 | 0.4485 | 786.0 | 661.8 | |
| 5.04 | 7.38 | 2.79 | 4.08 | 15.89 | 20.58 | -25.19 | 67.54 | 0.4448 | 980.2 | 654.3 | |
| 0.81 | 1.98 | 0.45 | 1.10 | 17.64 | 20.30 | -25.47 | 64.06 | 0.4577 | 890.7 | 763.2 | |
| 5.76 | 15.76 | 3.20 | 8.76 | 16.77 | 20.22 | -25.56 | 65.92 | 0.4543 | 1063.8 | 772.0 | |
| 0.00 | 3.06 | 0.00 | 1.71 | 17.41 | 20.05 | -25.72 | 64.70 | 0.4599 | 601.0 | 577.4 | |
| 4.50 | -35.00 | 2.51 | -35.00 | 17.07 | 20.03 | -25.74 | 65.42 | 0.4584 | 960.7 | 999999 | |
| 0.81 | 1.80 | 0.45 | 1.01 | 17.21 | 19.66 | -26.11 | 65.40 | 0.4643 | 706.7 | 575.6 | |
| 10.71 | 29.26 | 5.99 | 16.38 | 16.80 | 19.51 | -26.27 | 66.34 | 0.4644 | 1029.9 | 381.5 | |
| 4.14 | 43.76 | 2.31 | 24.42 | 16.18 | 19.56 | -26.21 | 67.57 | 0.4608 | 1192.4 | 476.8 | |
| 5.31 | -40.00 | 2.97 | -40.00 | 16.08 | 19.40 | -26.37 | 67.88 | 0.4626 | 1137.6 | 999999 | |
| 0.54 | -40.00 | 0.30 | -40.00 | 16.32 | 19.26 | -26.51 | 67.47 | 0.4657 | 839.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 16.63 | 19.14 | -26.63 | 66.92 | 0.4687 | 452.0 | 479.2 | |
| 4.59 | -40.00 | 2.57 | -40.00 | 16.10 | 19.12 | -26.66 | 68.02 | 0.4668 | 821.8 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.16 | 16.05 | 18.70 | -27.08 | 68.37 | 0.4725 | 607.0 | 354.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
