SDO HMI 2014-08-18 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.97 | 182.04 | 41.93 | 191.31 | 8.20 | 343.41 | -62.36 | 84.30 | 0.8831 | -697.5 | -210.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

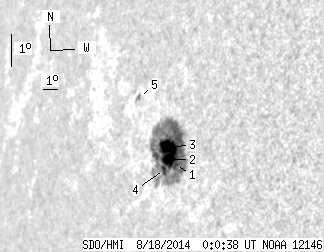

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 178.53 | 3.34 | 187.31 | 7.91 | 343.97 | -61.81 | 84.67 | 0.8787 | -847.6 | -221.3 | |
| 13.50 | -1.00 | 14.12 | -1.00 | 8.05 | 343.53 | -62.24 | 84.48 | 0.8822 | -738.9 | 999999 | |
| 18.64 | -1.00 | 19.57 | -1.00 | 8.40 | 343.37 | -62.40 | 84.07 | 0.8833 | -769.2 | 999999 | |
| 3.96 | -1.00 | 4.18 | -1.00 | 7.72 | 343.29 | -62.49 | 84.84 | 0.8843 | -305.0 | 999999 | |
| 0.63 | 3.51 | 0.72 | 4.00 | 9.69 | 340.93 | -64.84 | 82.49 | 0.9017 | 482.9 | 251.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
