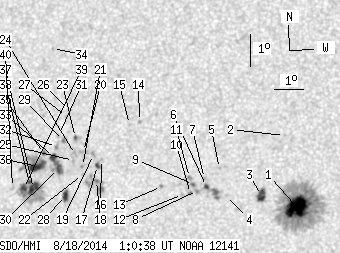

SDO HMI 2014-08-18 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.02 | 372.48 | 44.24 | 199.82 | 16.28 | 24.67 | -20.55 | 62.35 | 0.3799 | -24.5 | -44.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.60 | 186.21 | 17.06 | 97.42 | 15.89 | 28.43 | -16.80 | 59.58 | 0.3237 | -1386.3 | -414.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.10 | 27.79 | -17.43 | 54.74 | 0.3503 | -758.0 | -549.1 | |
| 6.66 | 9.27 | 3.51 | 4.89 | 16.22 | 27.20 | -18.02 | 60.27 | 0.3435 | -999.6 | -543.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 16.18 | 26.04 | -19.18 | 61.74 | 0.3598 | -851.0 | -682.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 17.00 | 25.72 | -19.50 | 60.05 | 0.3700 | -744.0 | -625.3 | |
| 1.71 | 11.08 | 0.91 | 5.90 | 16.43 | 25.34 | -19.88 | 61.86 | 0.3714 | -1001.7 | -878.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 16.68 | 25.25 | -19.97 | 61.37 | 0.3744 | -842.0 | -706.7 | |
| 0.00 | 2.43 | 0.00 | 1.30 | 16.30 | 25.06 | -20.17 | 62.50 | 0.3747 | -800.0 | -706.4 | |
| 0.81 | 1.71 | 0.43 | 0.91 | 16.48 | 24.90 | -20.32 | 62.22 | 0.3780 | -896.3 | -740.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 16.20 | 24.83 | -20.39 | 62.97 | 0.3773 | -786.0 | -651.3 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 16.69 | 24.74 | -20.48 | 61.87 | 0.3817 | -750.0 | -638.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.16 | 24.56 | -20.66 | 63.33 | 0.3808 | -675.0 | -419.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 16.37 | 23.83 | -21.39 | 63.51 | 0.3927 | -711.0 | -580.0 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 18.34 | 22.83 | -22.39 | 59.99 | 0.4194 | -784.0 | -558.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 18.24 | 22.50 | -22.73 | 60.53 | 0.4232 | -609.0 | -441.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 17.12 | 21.68 | -23.54 | 63.69 | 0.4277 | 779.0 | 693.6 | |
| 1.53 | 2.88 | 0.84 | 1.58 | 16.93 | 21.57 | -23.66 | 64.20 | 0.4282 | 1040.2 | 860.5 | |
| 0.36 | 17.92 | 0.20 | 9.80 | 16.46 | 21.59 | -23.63 | 65.20 | 0.4253 | 1218.0 | 829.8 | |
| 0.00 | 2.25 | 0.00 | 1.24 | 17.26 | 21.38 | -23.84 | 63.62 | 0.4327 | 942.0 | 836.2 | |
| 0.00 | 4.14 | 0.00 | 2.28 | 17.33 | 21.02 | -24.20 | 63.74 | 0.4381 | 719.0 | 700.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 16.87 | 21.05 | -24.17 | 64.72 | 0.4352 | 949.0 | 849.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.63 | 21.08 | -24.14 | 65.22 | 0.4334 | 761.0 | 624.5 | |
| 0.90 | 3.15 | 0.50 | 1.74 | 17.75 | 20.68 | -24.54 | 63.12 | 0.4453 | 865.4 | 695.4 | |
| 0.00 | 2.16 | 0.00 | 1.19 | 17.23 | 20.76 | -24.46 | 64.17 | 0.4413 | 875.0 | 766.8 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 17.04 | 20.71 | -24.51 | 64.60 | 0.4409 | 799.0 | 700.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 18.58 | 20.35 | -24.87 | 61.69 | 0.4547 | 657.0 | 474.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 18.39 | 20.27 | -24.95 | 62.14 | 0.4547 | 612.0 | 531.2 | |
| 4.14 | 7.02 | 2.28 | 3.86 | 15.95 | 20.58 | -24.64 | 67.05 | 0.4371 | 1019.7 | 736.7 | |
| 0.36 | 2.43 | 0.20 | 1.35 | 17.64 | 20.28 | -24.94 | 63.67 | 0.4503 | 918.5 | 775.7 | |
| 4.68 | 17.47 | 2.59 | 9.67 | 16.77 | 20.23 | -25.00 | 65.54 | 0.4463 | 1079.5 | 781.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 17.79 | 20.08 | -25.14 | 63.52 | 0.4538 | 542.0 | 414.0 | |
| 0.00 | 2.34 | 0.00 | 1.30 | 17.44 | 20.06 | -25.16 | 64.24 | 0.4522 | 712.0 | 605.1 | |
| 3.69 | -30.00 | 2.05 | -30.00 | 17.10 | 20.01 | -25.22 | 65.00 | 0.4512 | 928.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 20.47 | 19.43 | -25.80 | 58.72 | 0.4790 | 674.0 | 493.1 | |
| 0.81 | 2.07 | 0.45 | 1.15 | 17.21 | 19.67 | -25.55 | 65.01 | 0.4564 | 670.6 | 517.4 | |
| 10.72 | 30.25 | 5.96 | 16.86 | 16.80 | 19.49 | -25.74 | 65.99 | 0.4569 | 1005.8 | 377.8 | |
| 8.19 | 44.03 | 4.55 | 24.46 | 16.12 | 19.44 | -25.78 | 67.45 | 0.4543 | 1139.4 | 511.4 | |
| 0.99 | -37.00 | 0.55 | -37.00 | 16.29 | 19.28 | -25.95 | 67.18 | 0.4575 | 745.7 | 999999 | |
| 3.87 | -37.00 | 2.16 | -37.00 | 16.10 | 19.09 | -26.13 | 67.71 | 0.4592 | 828.9 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.06 | 16.11 | 18.70 | -26.52 | 67.92 | 0.4648 | 733.0 | 405.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
