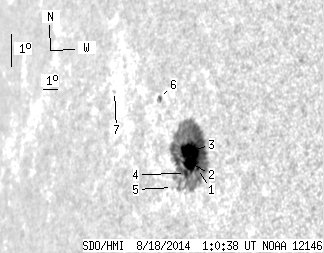

SDO HMI 2014-08-18 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.56 | 192.42 | 37.66 | 198.91 | 8.23 | 343.38 | -61.85 | 84.31 | 0.8788 | -683.0 | -205.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.98 | 188.19 | 2.00 | 194.19 | 7.94 | 343.99 | -61.24 | 84.67 | 0.8739 | -910.0 | -217.4 | |
| 13.69 | -1.00 | 14.06 | -1.00 | 8.05 | 343.51 | -61.72 | 84.52 | 0.8779 | -733.2 | 999999 | |
| 18.10 | -1.00 | 18.66 | -1.00 | 8.40 | 343.35 | -61.88 | 84.11 | 0.8790 | -796.2 | 999999 | |
| 2.07 | -1.00 | 2.14 | -1.00 | 7.72 | 343.26 | -61.96 | 84.88 | 0.8800 | -394.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.86 | 7.21 | 342.53 | -62.70 | 85.40 | 0.8863 | 207.0 | 194.3 | |
| 0.72 | 3.15 | 0.80 | 3.52 | 9.77 | 340.86 | -64.37 | 82.42 | 0.8982 | 457.6 | 309.3 | |
| 0.00 | 0.27 | 0.00 | 0.34 | 9.62 | 337.46 | -67.76 | 82.39 | 0.9224 | 170.0 | 140.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
