SDO HMI 2014-08-18 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.76 | 338.54 | 66.85 | 413.90 | -17.62 | 106.28 | 62.16 | 247.18 | 0.9140 | 29.3 | -12.5 | |
|
previous
or next observation for the same group /

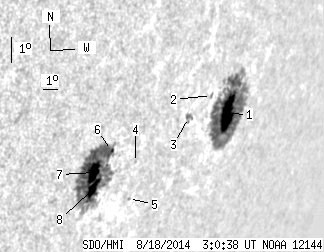

back to the solar disc SDO HMI 2014-08-18 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.55 | 174.54 | 39.38 | 240.64 | -17.14 | 109.58 | 65.46 | 248.67 | 0.9347 | 482.7 | 173.0 | |
| 0.00 | 1.80 | 0.00 | 2.30 | -16.37 | 107.89 | 63.77 | 249.03 | 0.9234 | 486.0 | 447.6 | |
| 0.00 | 5.76 | 0.00 | 7.07 | -16.94 | 106.60 | 62.48 | 248.07 | 0.9162 | 646.0 | 481.5 | |
| 0.00 | 0.90 | 0.00 | 1.01 | -18.10 | 103.75 | 59.63 | 245.99 | 0.8996 | 185.0 | 179.1 | |
| 0.00 | 1.08 | 0.00 | 1.24 | -19.32 | 104.02 | 59.89 | 244.78 | 0.9041 | -198.0 | -278.3 | |
| 1.44 | 154.46 | 1.53 | 161.64 | -17.52 | 101.96 | 57.83 | 246.03 | 0.8853 | -208.1 | -323.5 | |
| 14.05 | -6.00 | 14.63 | -6.00 | -18.16 | 101.21 | 57.08 | 245.08 | 0.8814 | -845.0 | 999999 | |
| 10.72 | -6.00 | 11.31 | -6.00 | -18.72 | 101.50 | 57.37 | 244.58 | 0.8850 | -475.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
