SDO HMI 2014-08-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.38 | 380.28 | 39.68 | 202.06 | 16.32 | 24.59 | -18.98 | 60.48 | 0.3579 | -79.4 | -31.4 | |
|
previous
or next observation for the same group /

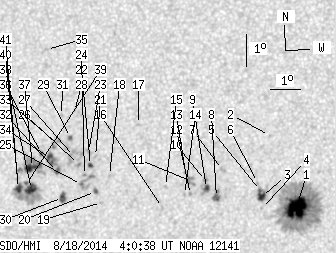

back to the solar disc SDO HMI 2014-08-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.17 | 178.80 | 15.67 | 92.82 | 15.92 | 28.41 | -15.16 | 57.10 | 0.3009 | -1422.2 | -434.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.11 | 27.34 | -16.24 | 52.92 | 0.3346 | -741.0 | -629.3 | |
| 4.41 | 10.90 | 2.31 | 5.70 | 16.23 | 27.24 | -16.34 | 58.03 | 0.3198 | -1049.4 | -434.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.86 | 27.27 | -16.31 | 59.01 | 0.3164 | -580.0 | -390.4 | |
| 0.27 | -3.00 | 0.14 | -3.00 | 16.41 | 27.19 | -16.39 | 57.59 | 0.3219 | -850.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 16.65 | 27.07 | -16.51 | 57.11 | 0.3256 | -430.0 | -372.0 | |
| 0.00 | 2.79 | 0.00 | 1.47 | 17.02 | 25.88 | -17.70 | 57.82 | 0.3450 | -705.0 | -628.3 | |
| 2.34 | 7.93 | 1.23 | 4.17 | 16.15 | 25.76 | -17.82 | 60.23 | 0.3401 | -1014.7 | -862.1 | |
| 2.34 | 7.39 | 1.24 | 3.90 | 16.41 | 25.40 | -18.18 | 59.98 | 0.3471 | -1043.9 | -701.2 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 16.66 | 25.34 | -18.23 | 59.42 | 0.3497 | -913.0 | -740.0 | |
| 0.00 | 6.85 | 0.00 | 3.63 | 16.61 | 24.88 | -18.70 | 60.10 | 0.3558 | -592.0 | -690.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 16.21 | 24.89 | -18.69 | 61.12 | 0.3529 | -785.0 | -697.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 16.88 | 24.65 | -18.92 | 59.70 | 0.3610 | -414.0 | -409.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 16.20 | 24.69 | -18.89 | 61.37 | 0.3557 | -656.0 | -510.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 16.43 | 24.03 | -19.55 | 61.54 | 0.3666 | -724.0 | -515.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 15.78 | 23.99 | -19.58 | 63.21 | 0.3629 | -806.0 | -624.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 18.30 | 22.90 | -20.68 | 58.33 | 0.3956 | -763.0 | -426.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.69 | 22.10 | -21.47 | 62.85 | 0.3957 | 678.0 | 577.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.85 | 21.93 | -21.65 | 64.99 | 0.3932 | 872.0 | 702.2 | |
| 0.99 | 2.52 | 0.53 | 1.36 | 16.18 | 21.69 | -21.89 | 64.42 | 0.3986 | 1013.9 | 811.5 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 17.25 | 21.56 | -22.02 | 62.06 | 0.4070 | 767.0 | 639.0 | |
| 1.35 | 2.79 | 0.73 | 1.51 | 16.97 | 21.42 | -22.15 | 62.83 | 0.4071 | 1054.9 | 859.5 | |
| 0.00 | 2.43 | 0.00 | 1.32 | 17.40 | 21.30 | -22.28 | 61.97 | 0.4115 | 856.0 | 763.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.65 | 21.26 | -22.32 | 63.70 | 0.4076 | 861.0 | 746.8 | |
| 0.45 | 10.63 | 0.24 | 5.75 | 16.37 | 21.19 | -22.39 | 64.40 | 0.4069 | 1073.6 | 809.4 | |
| 0.00 | 2.16 | 0.00 | 1.17 | 16.98 | 21.01 | -22.57 | 63.16 | 0.4131 | 1033.0 | 826.2 | |
| 0.00 | 12.25 | 0.00 | 6.67 | 17.22 | 20.84 | -22.74 | 62.77 | 0.4169 | 884.0 | 759.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 18.61 | 20.65 | -22.92 | 59.92 | 0.4283 | 593.0 | 466.9 | |
| 0.99 | 2.43 | 0.54 | 1.33 | 17.80 | 20.63 | -22.95 | 61.69 | 0.4235 | 965.9 | 823.7 | |
| 3.78 | 6.03 | 2.06 | 3.28 | 15.95 | 20.59 | -22.99 | 65.87 | 0.4132 | 1039.2 | 815.3 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 18.47 | 20.22 | -23.36 | 60.62 | 0.4333 | 740.0 | 558.0 | |
| 1.71 | 18.56 | 0.93 | 10.15 | 16.74 | 20.32 | -23.26 | 64.30 | 0.4214 | 1011.6 | 821.5 | |
| 0.00 | 6.22 | 0.00 | 3.41 | 17.60 | 20.17 | -23.41 | 62.54 | 0.4286 | 350.0 | 637.9 | |
| 2.88 | -32.00 | 1.58 | -32.00 | 17.16 | 19.98 | -23.59 | 63.65 | 0.4285 | 909.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 20.49 | 19.38 | -24.20 | 57.28 | 0.4582 | 748.0 | 504.5 | |
| 0.81 | 2.16 | 0.45 | 1.19 | 17.27 | 19.69 | -23.88 | 63.65 | 0.4333 | 690.2 | 503.2 | |
| 9.19 | 28.55 | 5.05 | 15.70 | 16.82 | 19.44 | -24.14 | 64.81 | 0.4344 | 1003.8 | 509.2 | |
| 7.75 | 46.21 | 4.25 | 25.35 | 16.14 | 19.49 | -24.08 | 66.25 | 0.4300 | 1162.1 | 494.0 | |
| 0.63 | -38.00 | 0.35 | -38.00 | 16.32 | 19.30 | -24.28 | 66.00 | 0.4337 | 904.1 | 999999 | |
| 4.32 | -38.00 | 2.38 | -38.00 | 16.15 | 19.04 | -24.54 | 66.55 | 0.4366 | 849.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 16.46 | 18.97 | -24.61 | 65.94 | 0.4392 | 644.0 | 497.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
