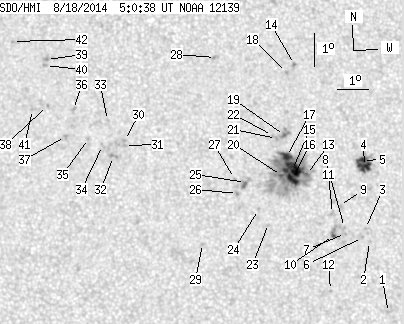

SDO HMI 2014-08-18 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.29 | 238.05 | 24.99 | 122.71 | 13.96 | 57.39 | 14.36 | 298.75 | 0.2762 | -473.4 | -307.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.66 | 9.41 | 60.71 | 17.68 | 279.72 | 0.3054 | -730.0 | -599.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.59 | 60.23 | 17.20 | 287.07 | 0.3043 | -642.0 | -511.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.99 | 60.12 | 17.09 | 288.44 | 0.3044 | -750.0 | -580.9 | |
| 9.73 | 21.62 | 5.08 | 11.29 | 13.88 | 60.23 | 17.20 | 294.15 | 0.3160 | -1139.8 | -475.2 | |
| 4.41 | -4.00 | 2.30 | -4.00 | 14.07 | 60.18 | 17.15 | 294.75 | 0.3163 | -1047.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.72 | 60.01 | 16.98 | 287.67 | 0.3014 | -781.0 | -637.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.86 | 59.47 | 16.44 | 288.60 | 0.2935 | -979.0 | -832.6 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 12.05 | 59.45 | 16.42 | 289.22 | 0.2940 | -731.0 | -583.0 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 12.72 | 59.33 | 16.30 | 291.54 | 0.2956 | -311.0 | -405.0 | |
| 0.81 | 7.12 | 0.42 | 3.68 | 11.82 | 59.08 | 16.05 | 288.81 | 0.2871 | -1128.7 | -887.4 | |
| 0.00 | 2.70 | 0.00 | 1.40 | 12.49 | 59.09 | 16.06 | 291.03 | 0.2906 | -797.0 | -635.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.15 | 58.88 | 15.86 | 283.19 | 0.2775 | -807.0 | -659.1 | |
| 0.27 | 147.37 | 0.14 | 75.97 | 13.70 | 58.32 | 15.30 | 295.90 | 0.2862 | -609.0 | -478.3 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 17.09 | 58.19 | 15.16 | 306.16 | 0.3111 | -931.0 | -781.2 | |
| 18.02 | -13.00 | 9.30 | -13.00 | 13.87 | 57.88 | 14.85 | 297.06 | 0.2807 | -1282.8 | 999999 | |
| 7.75 | -13.00 | 3.99 | -13.00 | 13.59 | 57.86 | 14.84 | 296.18 | 0.2786 | -1278.1 | 999999 | |
| 5.59 | -13.00 | 2.88 | -13.00 | 14.27 | 57.72 | 14.69 | 298.61 | 0.2811 | -1014.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 16.85 | 57.91 | 14.88 | 305.99 | 0.3051 | -891.0 | -696.4 | |
| 0.45 | 6.58 | 0.23 | 3.40 | 14.92 | 57.70 | 14.67 | 300.68 | 0.2858 | -974.8 | -758.0 | |
| 1.26 | -13.00 | 0.65 | -13.00 | 13.70 | 57.52 | 14.49 | 297.02 | 0.2741 | -1040.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 14.83 | 57.43 | 14.40 | 300.84 | 0.2813 | -1007.0 | -804.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 14.93 | 57.31 | 14.28 | 301.34 | 0.2803 | -794.0 | -714.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 12.25 | 57.01 | 13.98 | 292.65 | 0.2570 | -413.0 | -462.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 12.68 | 56.72 | 13.69 | 294.66 | 0.2552 | 612.0 | 515.1 | |
| 0.00 | 6.67 | 0.00 | 3.41 | 13.52 | 56.35 | 13.32 | 298.23 | 0.2554 | 650.0 | 449.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 13.19 | 56.07 | 13.04 | 297.51 | 0.2489 | 955.0 | 820.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.65 | 56.00 | 12.97 | 299.29 | 0.2513 | 751.0 | 615.6 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 17.38 | 55.63 | 12.60 | 311.86 | 0.2808 | -647.0 | -669.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 11.69 | 54.88 | 11.85 | 293.63 | 0.2206 | 654.0 | 491.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 14.89 | 52.55 | 9.53 | 311.72 | 0.2152 | 701.0 | 575.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 14.74 | 52.55 | 9.52 | 311.19 | 0.2135 | 793.0 | 636.7 | |
| 0.00 | 3.51 | 0.00 | 1.78 | 14.41 | 52.18 | 9.15 | 311.04 | 0.2052 | 793.0 | 750.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 15.52 | 52.04 | 9.01 | 315.43 | 0.2160 | 594.0 | 388.4 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 14.75 | 51.85 | 8.82 | 313.35 | 0.2048 | 760.0 | 699.3 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 14.98 | 51.41 | 8.38 | 315.57 | 0.2021 | 959.0 | 718.2 | |
| 0.00 | 2.70 | 0.00 | 1.37 | 15.88 | 50.97 | 7.94 | 320.11 | 0.2082 | 865.0 | 648.5 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 15.05 | 50.69 | 7.66 | 318.36 | 0.1946 | 975.0 | 776.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.01 | 50.15 | 7.12 | 323.52 | 0.2014 | 877.0 | 768.8 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 17.43 | 50.17 | 7.15 | 327.40 | 0.2212 | 1002.0 | 785.2 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 17.24 | 50.13 | 7.11 | 327.06 | 0.2183 | 972.0 | 683.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.90 | 49.67 | 6.64 | 325.04 | 0.1950 | 902.0 | 702.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.00 | 49.10 | 6.08 | 332.70 | 0.2205 | 850.0 | 653.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
