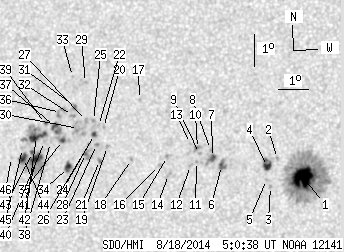

SDO HMI 2014-08-18 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.87 | 359.11 | 38.21 | 190.15 | 16.29 | 24.66 | -18.37 | 59.79 | 0.3490 | -34.1 | -62.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.37 | 171.24 | 15.21 | 88.66 | 15.91 | 28.45 | -14.58 | 56.18 | 0.2926 | -1431.0 | -469.0 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 16.47 | 27.56 | -15.47 | 56.04 | 0.3097 | -786.0 | -593.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 15.60 | 27.40 | -15.63 | 58.76 | 0.3049 | -855.0 | -575.8 | |
| 4.05 | 8.56 | 2.11 | 4.46 | 16.21 | 27.25 | -15.78 | 57.24 | 0.3118 | -1035.0 | -723.3 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 15.81 | 27.25 | -15.78 | 58.37 | 0.3086 | -783.0 | -491.3 | |
| 2.34 | 6.40 | 1.23 | 3.36 | 16.19 | 25.73 | -17.29 | 59.44 | 0.3330 | -1049.3 | -896.2 | |
| 2.16 | 7.21 | 1.14 | 3.79 | 16.43 | 25.41 | -17.61 | 59.23 | 0.3393 | -1085.2 | -740.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.67 | 25.33 | -17.70 | 58.71 | 0.3424 | -837.0 | -801.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.54 | 24.97 | -18.06 | 59.51 | 0.3463 | -954.0 | -853.0 | |
| 0.00 | 3.42 | 0.00 | 1.81 | 16.69 | 24.89 | -18.14 | 59.22 | 0.3486 | -832.0 | -706.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 16.29 | 24.90 | -18.13 | 60.25 | 0.3455 | -945.0 | -769.7 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 16.16 | 24.71 | -18.32 | 60.82 | 0.3473 | -706.0 | -498.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 16.84 | 24.64 | -18.39 | 59.16 | 0.3531 | -658.0 | -527.7 | |
| 0.00 | 3.78 | 0.00 | 2.00 | 15.86 | 24.00 | -19.02 | 62.41 | 0.3553 | -819.0 | -691.3 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 16.41 | 23.92 | -19.11 | 61.10 | 0.3603 | -778.0 | -681.8 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 16.12 | 23.68 | -19.35 | 62.09 | 0.3618 | -688.0 | -524.8 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 18.13 | 22.78 | -20.25 | 58.24 | 0.3885 | -663.0 | -389.6 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 16.27 | 22.72 | -20.31 | 62.72 | 0.3765 | -457.0 | -169.1 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 16.64 | 21.87 | -21.16 | 62.67 | 0.3910 | 944.0 | 705.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 17.22 | 21.66 | -21.37 | 61.52 | 0.3976 | 933.0 | 703.1 | |
| 0.00 | 2.61 | 0.00 | 1.41 | 16.20 | 21.65 | -21.38 | 63.93 | 0.3915 | 1063.0 | 881.6 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 17.27 | 21.49 | -21.54 | 61.56 | 0.4004 | 927.0 | 725.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 16.69 | 21.49 | -21.54 | 62.92 | 0.3967 | 1047.0 | 867.8 | |
| 1.53 | 2.79 | 0.83 | 1.51 | 16.99 | 21.38 | -21.65 | 62.31 | 0.4001 | 1031.1 | 835.5 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 17.42 | 21.30 | -21.73 | 61.41 | 0.4040 | 882.0 | 741.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.67 | 21.22 | -21.81 | 63.20 | 0.4005 | 830.0 | 705.2 | |
| 0.00 | 2.61 | 0.00 | 1.42 | 17.41 | 21.06 | -21.97 | 61.66 | 0.4073 | 815.0 | 748.9 | |
| 0.63 | 6.49 | 0.34 | 3.50 | 16.39 | 21.15 | -21.88 | 63.91 | 0.3998 | 1019.3 | 858.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 18.58 | 20.87 | -22.16 | 59.25 | 0.4177 | 890.0 | 748.9 | |
| 0.00 | 11.98 | 0.00 | 6.50 | 17.15 | 20.81 | -22.21 | 62.47 | 0.4091 | 920.0 | 785.5 | |
| 0.72 | 1.98 | 0.39 | 1.08 | 17.82 | 20.59 | -22.44 | 61.17 | 0.4165 | 1020.9 | 869.2 | |
| 0.00 | 2.25 | 0.00 | 1.23 | 17.54 | 20.56 | -22.47 | 61.82 | 0.4151 | 894.0 | 742.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 18.75 | 20.40 | -22.63 | 59.36 | 0.4253 | 663.0 | 500.9 | |
| 4.05 | 6.22 | 2.19 | 3.37 | 15.94 | 20.62 | -22.41 | 65.42 | 0.4048 | 1025.4 | 771.4 | |
| 1.53 | 16.21 | 0.83 | 8.83 | 16.76 | 20.31 | -22.71 | 63.80 | 0.4138 | 974.0 | 853.7 | |
| 0.00 | 5.31 | 0.00 | 2.90 | 17.62 | 20.13 | -22.89 | 62.04 | 0.4215 | 209.0 | 694.0 | |
| 2.25 | -35.00 | 1.23 | -35.00 | 17.18 | 19.98 | -23.04 | 63.14 | 0.4209 | 921.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 16.68 | 19.91 | -23.12 | 64.31 | 0.4191 | 682.0 | 577.0 | |
| 0.63 | 1.62 | 0.34 | 0.89 | 17.26 | 19.66 | -23.36 | 63.24 | 0.4259 | 720.6 | 606.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 16.70 | 19.70 | -23.33 | 64.43 | 0.4222 | 695.0 | 620.0 | |
| 8.20 | 39.55 | 4.48 | 21.60 | 16.17 | 19.49 | -23.54 | 65.79 | 0.4223 | 1149.0 | 506.0 | |
| 8.92 | 26.03 | 4.88 | 14.26 | 16.84 | 19.41 | -23.62 | 64.36 | 0.4272 | 1004.3 | 468.5 | |
| 1.08 | -41.00 | 0.59 | -41.00 | 16.35 | 19.33 | -23.70 | 65.51 | 0.4255 | 822.2 | 999999 | |
| 4.41 | -41.00 | 2.42 | -41.00 | 16.15 | 19.05 | -23.98 | 66.17 | 0.4286 | 859.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 16.45 | 18.97 | -24.06 | 65.55 | 0.4312 | 600.0 | 486.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.16 | 18.63 | -24.40 | 66.44 | 0.4346 | 371.0 | 243.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
