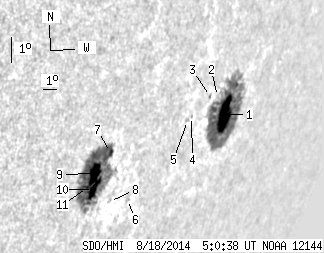

SDO HMI 2014-08-18 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.26 | 316.18 | 76.00 | 403.73 | -17.60 | 106.34 | 63.32 | 247.52 | 0.9212 | -14.6 | -18.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.46 | 164.58 | 42.67 | 238.44 | -17.14 | 109.60 | 66.58 | 248.95 | 0.9410 | 455.7 | 153.0 | |
| 0.00 | 1.08 | 0.00 | 1.48 | -16.44 | 108.57 | 65.54 | 249.42 | 0.9342 | 502.0 | 487.8 | |
| 0.00 | 1.35 | 0.00 | 1.81 | -16.37 | 107.99 | 64.97 | 249.34 | 0.9307 | 586.0 | 472.2 | |
| 0.00 | 0.99 | 0.00 | 1.28 | -16.90 | 106.92 | 63.89 | 248.50 | 0.9250 | 384.0 | 340.9 | |
| 0.00 | 1.98 | 0.00 | 2.54 | -17.01 | 106.69 | 63.67 | 248.33 | 0.9238 | 589.0 | 482.0 | |
| 0.00 | 2.34 | 0.00 | 2.79 | -19.30 | 103.97 | 60.94 | 245.13 | 0.9111 | -73.0 | -138.8 | |
| 2.43 | 142.69 | 2.65 | 154.05 | -17.53 | 101.85 | 58.82 | 246.34 | 0.8926 | -308.3 | -321.8 | |
| 0.00 | 1.17 | 0.00 | 1.34 | -19.24 | 102.75 | 59.72 | 244.81 | 0.9028 | -224.0 | -94.1 | |
| 15.94 | -7.00 | 17.15 | -7.00 | -18.15 | 101.20 | 58.17 | 245.46 | 0.8893 | -862.8 | 999999 | |
| 10.63 | -7.00 | 11.59 | -7.00 | -18.70 | 101.43 | 58.41 | 244.95 | 0.8924 | -450.2 | 999999 | |
| 1.80 | -7.00 | 1.94 | -7.00 | -18.59 | 101.01 | 57.98 | 244.93 | 0.8891 | -810.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
