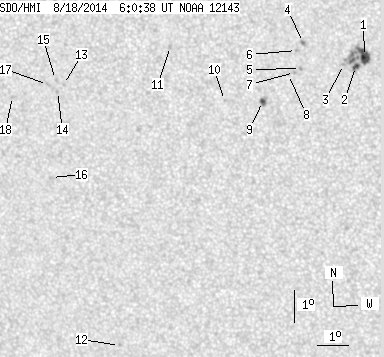

SDO HMI 2014-08-18 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.77 | 60.33 | 7.60 | 31.35 | -4.84 | 29.95 | -12.53 | 133.48 | 0.2958 | 358.9 | 415.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.18 | 35.13 | 5.22 | 18.02 | -4.16 | 32.39 | -10.09 | 137.10 | 0.2578 | 1155.2 | 816.7 | |
| 2.52 | -1.00 | 1.30 | -1.00 | -4.47 | 32.11 | -10.37 | 137.13 | 0.2649 | 897.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.42 | 31.74 | -10.74 | 135.97 | 0.2685 | 792.0 | 686.6 | |
| 0.00 | 2.52 | 0.00 | 1.30 | -3.76 | 30.51 | -11.97 | 131.10 | 0.2759 | 1134.0 | 902.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -4.57 | 30.40 | -12.08 | 132.97 | 0.2863 | 949.0 | 782.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -4.02 | 30.29 | -12.19 | 131.25 | 0.2815 | 951.0 | 807.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -4.70 | 30.21 | -12.27 | 132.85 | 0.2901 | 844.0 | 664.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -4.77 | 30.02 | -12.46 | 132.58 | 0.2932 | 639.0 | 470.7 | |
| 2.07 | 4.23 | 1.08 | 2.21 | -5.62 | 29.19 | -13.29 | 132.79 | 0.3131 | -947.1 | -752.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -5.63 | 28.00 | -14.48 | 130.32 | 0.3279 | 718.0 | 618.2 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -4.01 | 26.33 | -16.15 | 123.35 | 0.3336 | 742.0 | 685.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -13.51 | 24.22 | -18.26 | 138.22 | 0.4592 | -694.0 | -575.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -5.31 | 22.87 | -19.61 | 121.24 | 0.3925 | -764.0 | -577.7 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -5.53 | 22.67 | -19.81 | 121.46 | 0.3972 | -392.0 | -472.4 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -5.16 | 22.62 | -19.87 | 120.59 | 0.3948 | -686.0 | -600.6 | |
| 0.00 | 2.52 | 0.00 | 1.38 | -8.23 | 22.35 | -20.13 | 126.49 | 0.4255 | -739.0 | -526.6 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -5.33 | 22.35 | -20.13 | 120.60 | 0.3998 | -850.0 | -590.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -5.75 | 21.19 | -21.29 | 120.05 | 0.4191 | -706.0 | -626.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
