SDO HMI 2014-08-18 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.97 | 57.10 | 6.66 | 29.58 | -4.73 | 30.35 | -11.58 | 135.44 | 0.2833 | 395.6 | 492.3 | |
|
previous
or next observation for the same group /

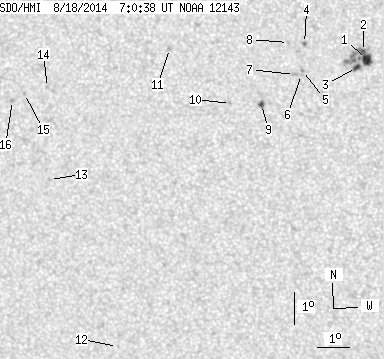

back to the solar disc SDO HMI 2014-08-18 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.03 | 35.95 | 3.60 | 18.41 | -4.21 | 32.46 | -9.47 | 139.05 | 0.2515 | 1146.9 | 817.6 | |
| 1.35 | -1.00 | 0.69 | -1.00 | -3.96 | 32.37 | -9.56 | 138.13 | 0.2493 | 1199.7 | 999999 | |
| 2.70 | -1.00 | 1.39 | -1.00 | -4.46 | 32.15 | -9.78 | 138.77 | 0.2582 | 912.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -3.75 | 30.55 | -11.38 | 132.52 | 0.2684 | 1127.0 | 955.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -4.59 | 30.48 | -11.46 | 134.54 | 0.2790 | 939.0 | 794.1 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -4.71 | 30.44 | -11.49 | 134.78 | 0.2809 | 656.0 | 692.2 | |
| 0.00 | 2.34 | 0.00 | 1.21 | -4.72 | 30.22 | -11.71 | 134.25 | 0.2836 | 802.0 | 665.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -3.73 | 30.05 | -11.88 | 131.24 | 0.2743 | 836.0 | 618.8 | |
| 1.89 | 4.41 | 0.98 | 2.30 | -5.67 | 29.18 | -12.76 | 134.09 | 0.3073 | -980.0 | -717.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -5.67 | 28.20 | -13.73 | 131.96 | 0.3190 | 766.0 | 607.9 | |
| 0.00 | 2.61 | 0.00 | 1.37 | -4.02 | 26.32 | -15.61 | 124.30 | 0.3264 | 721.0 | 609.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -13.49 | 24.20 | -17.74 | 139.02 | 0.4536 | -710.0 | -527.1 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -8.24 | 22.32 | -19.61 | 127.24 | 0.4190 | -724.0 | -559.3 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -5.37 | 22.38 | -19.55 | 121.45 | 0.3922 | -722.0 | -561.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -5.58 | 21.63 | -20.30 | 120.93 | 0.4043 | -748.0 | -615.8 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -5.82 | 21.23 | -20.70 | 120.92 | 0.4117 | -827.0 | -660.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
