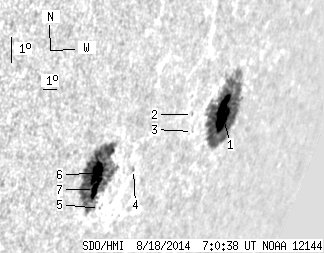

SDO HMI 2014-08-18 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.79 | 300.17 | 71.55 | 400.43 | -17.65 | 106.32 | 64.39 | 247.77 | 0.9278 | 23.1 | -43.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.02 | 157.38 | 42.74 | 240.32 | -17.17 | 109.61 | 67.68 | 249.19 | 0.9470 | 571.0 | 115.9 | |
| 0.00 | 0.90 | 0.00 | 1.22 | -16.91 | 107.02 | 65.09 | 248.81 | 0.9322 | 368.0 | 374.0 | |
| 0.00 | 0.27 | 0.00 | 0.37 | -17.51 | 107.43 | 65.49 | 248.29 | 0.9355 | -169.0 | -136.7 | |
| 0.00 | 1.44 | 0.00 | 1.75 | -18.34 | 103.69 | 61.76 | 246.39 | 0.9143 | 256.0 | 268.0 | |
| 0.00 | 0.45 | 0.00 | 0.52 | -19.46 | 102.12 | 60.18 | 244.73 | 0.9064 | -144.0 | -143.4 | |
| 17.75 | 139.73 | 19.78 | 156.25 | -18.21 | 101.25 | 59.32 | 245.78 | 0.8977 | -871.9 | -299.0 | |
| 8.02 | -6.00 | 9.03 | -6.00 | -18.75 | 101.37 | 59.44 | 245.24 | 0.8997 | -633.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
