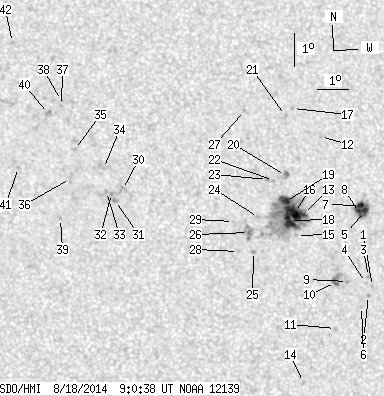

SDO HMI 2014-08-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.45 | 216.24 | 24.85 | 112.56 | 13.91 | 57.40 | 16.56 | 295.53 | 0.3084 | -501.6 | -328.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.56 | 60.38 | 19.55 | 285.34 | 0.3414 | -647.0 | -449.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.29 | 60.23 | 19.40 | 284.66 | 0.3381 | -841.0 | -690.1 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 11.87 | 60.27 | 19.44 | 286.30 | 0.3408 | -856.0 | -663.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.69 | 60.16 | 19.33 | 285.86 | 0.3384 | -605.0 | -510.0 | |
| 4.95 | 18.11 | 2.62 | 9.57 | 13.86 | 60.31 | 19.47 | 291.84 | 0.3501 | -1077.4 | -603.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 10.97 | 59.98 | 19.14 | 283.85 | 0.3330 | -737.0 | -602.4 | |
| 4.86 | -5.00 | 2.57 | -5.00 | 14.04 | 60.19 | 19.35 | 292.45 | 0.3494 | -1082.0 | 999999 | |
| 3.24 | -5.00 | 1.71 | -5.00 | 13.83 | 60.14 | 19.30 | 291.92 | 0.3475 | -1248.0 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 11.74 | 59.58 | 18.74 | 286.40 | 0.3293 | -1041.0 | -828.6 | |
| 1.35 | 9.01 | 0.71 | 4.72 | 11.73 | 59.18 | 18.35 | 286.64 | 0.3230 | -1096.7 | -868.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 10.33 | 59.09 | 18.25 | 282.39 | 0.3169 | -848.0 | -683.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 16.21 | 59.06 | 18.23 | 299.43 | 0.3463 | -737.0 | -608.1 | |
| 1.98 | 125.03 | 1.04 | 65.14 | 13.84 | 58.29 | 17.46 | 293.74 | 0.3196 | -842.4 | -557.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 8.73 | 57.97 | 17.13 | 277.65 | 0.2951 | -832.0 | -631.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 13.21 | 58.02 | 17.18 | 292.14 | 0.3118 | -611.0 | -405.6 | |
| 15.49 | -13.00 | 8.08 | -13.00 | 13.91 | 58.00 | 17.17 | 294.27 | 0.3157 | -1236.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 17.10 | 58.22 | 17.38 | 302.84 | 0.3413 | -813.0 | -636.6 | |
| 10.90 | -13.00 | 5.68 | -13.00 | 13.67 | 57.82 | 16.99 | 293.76 | 0.3115 | -1329.8 | 999999 | |
| 4.68 | -13.00 | 2.44 | -13.00 | 14.26 | 57.74 | 16.90 | 295.60 | 0.3138 | -1061.0 | 999999 | |
| 0.00 | 3.96 | 0.00 | 2.07 | 15.05 | 57.80 | 16.96 | 297.84 | 0.3200 | -992.0 | -830.9 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 16.89 | 57.97 | 17.13 | 302.65 | 0.3361 | -833.0 | -774.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 14.91 | 57.40 | 16.56 | 297.95 | 0.3131 | -898.0 | -724.8 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 14.95 | 57.20 | 16.37 | 298.32 | 0.3106 | -861.0 | -709.2 | |
| 0.00 | 2.07 | 0.00 | 1.07 | 13.80 | 56.82 | 15.98 | 295.32 | 0.2972 | -379.0 | -368.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 12.77 | 56.59 | 15.75 | 292.29 | 0.2874 | 800.0 | 672.8 | |
| 0.00 | 10.18 | 0.00 | 5.27 | 13.35 | 56.46 | 15.63 | 294.35 | 0.2890 | 709.0 | 426.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 17.09 | 56.63 | 15.79 | 305.17 | 0.3195 | -817.0 | -624.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 12.78 | 56.10 | 15.27 | 292.91 | 0.2800 | 601.0 | 565.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 13.70 | 56.00 | 15.17 | 296.09 | 0.2843 | 623.0 | 491.2 | |
| 0.00 | 4.05 | 0.00 | 2.07 | 14.78 | 52.50 | 11.66 | 305.90 | 0.2423 | 681.0 | 663.5 | |
| 0.00 | 2.70 | 0.00 | 1.38 | 14.45 | 52.25 | 11.42 | 305.28 | 0.2359 | 890.0 | 754.4 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 14.67 | 52.14 | 11.30 | 306.32 | 0.2363 | 1048.0 | 851.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 14.73 | 51.98 | 11.14 | 306.91 | 0.2348 | 923.0 | 769.7 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 15.44 | 51.92 | 11.09 | 309.46 | 0.2412 | 698.0 | 686.8 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 16.04 | 51.03 | 10.19 | 313.74 | 0.2363 | 882.0 | 595.9 | |
| 0.00 | 2.97 | 0.00 | 1.51 | 15.15 | 50.85 | 10.02 | 311.27 | 0.2243 | 769.0 | 684.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 17.41 | 50.68 | 9.84 | 318.74 | 0.2485 | 727.0 | 533.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.56 | 50.69 | 9.85 | 319.14 | 0.2505 | 622.0 | 536.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.94 | 50.48 | 9.64 | 307.81 | 0.2067 | 905.0 | 653.6 | |
| 0.00 | 2.79 | 0.00 | 1.43 | 17.17 | 50.25 | 9.41 | 319.32 | 0.2408 | 1026.0 | 799.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 15.52 | 49.21 | 8.37 | 317.51 | 0.2087 | 644.0 | 516.3 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 19.39 | 49.20 | 8.37 | 327.97 | 0.2599 | 802.0 | 585.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
