SDO HMI 2014-08-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.62 | 348.94 | 41.25 | 182.38 | 16.31 | 25.02 | -15.82 | 56.06 | 0.3138 | -133.8 | -79.1 | |
|
previous
or next observation for the same group /

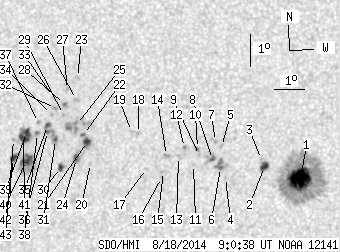

back to the solar disc SDO HMI 2014-08-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.31 | 177.37 | 18.12 | 91.02 | 15.90 | 28.50 | -12.34 | 51.92 | 0.2622 | -1393.1 | -411.5 | |
| 4.77 | 7.03 | 2.46 | 3.63 | 16.24 | 27.31 | -13.53 | 53.30 | 0.2813 | -1023.1 | -603.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 16.45 | 27.20 | -13.64 | 52.89 | 0.2848 | -626.0 | -523.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.87 | 26.07 | -14.77 | 56.62 | 0.2950 | -745.0 | -617.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 16.81 | 25.86 | -14.97 | 54.25 | 0.3061 | -774.0 | -683.0 | |
| 1.08 | 9.37 | 0.56 | 4.86 | 16.17 | 25.88 | -14.96 | 56.05 | 0.3001 | -1003.1 | -865.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.96 | 25.65 | -15.18 | 54.20 | 0.3102 | -857.0 | -694.9 | |
| 1.17 | 8.20 | 0.61 | 4.27 | 16.41 | 25.60 | -15.24 | 55.83 | 0.3061 | -1060.2 | -685.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 16.52 | 25.16 | -15.67 | 56.22 | 0.3130 | -956.0 | -808.8 | |
| 0.00 | 2.43 | 0.00 | 1.27 | 16.73 | 25.08 | -15.76 | 55.76 | 0.3159 | -867.0 | -712.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 16.23 | 24.99 | -15.85 | 57.27 | 0.3130 | -863.0 | -697.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.75 | 24.65 | -16.19 | 56.37 | 0.3220 | -720.0 | -628.4 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 16.47 | 24.48 | -16.36 | 57.40 | 0.3220 | -628.0 | -584.2 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 16.48 | 24.08 | -16.76 | 57.92 | 0.3277 | -885.0 | -720.0 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 15.99 | 24.02 | -16.81 | 59.34 | 0.3247 | -799.0 | -556.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.80 | 23.97 | -16.86 | 59.92 | 0.3240 | -859.0 | -735.4 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 16.06 | 23.45 | -17.38 | 59.90 | 0.3333 | -721.0 | -480.7 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 17.13 | 23.09 | -17.75 | 57.58 | 0.3466 | -700.0 | -554.3 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 17.18 | 22.85 | -17.99 | 57.76 | 0.3503 | -612.0 | -392.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 16.15 | 21.58 | -19.25 | 61.90 | 0.3606 | 814.0 | 697.3 | |
| 3.87 | 9.46 | 2.06 | 5.04 | 16.82 | 21.41 | -19.42 | 60.41 | 0.3677 | 1173.9 | 798.1 | |
| 0.81 | -21.00 | 0.43 | -21.00 | 17.03 | 21.25 | -19.58 | 60.07 | 0.3714 | 1091.3 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 18.79 | 20.85 | -19.99 | 56.44 | 0.3900 | 763.0 | 622.5 | |
| 2.25 | 9.10 | 1.20 | 4.84 | 16.29 | 21.10 | -19.74 | 62.08 | 0.3685 | 1104.8 | 744.7 | |
| 0.00 | 15.67 | 0.00 | 8.38 | 17.33 | 20.99 | -19.85 | 59.65 | 0.3772 | 751.0 | 866.3 | |
| 0.00 | 2.70 | 0.00 | 1.45 | 18.10 | 20.90 | -19.94 | 57.94 | 0.3841 | 716.0 | 608.5 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 18.40 | 20.56 | -20.28 | 57.65 | 0.3910 | 860.0 | 587.2 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 17.93 | 20.51 | -20.33 | 58.77 | 0.3882 | 1044.0 | 895.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 17.63 | 20.51 | -20.33 | 59.49 | 0.3859 | 825.0 | 700.2 | |
| 2.34 | 3.96 | 1.25 | 2.12 | 15.99 | 20.59 | -20.25 | 63.34 | 0.3738 | 1003.3 | 810.4 | |
| 1.17 | 16.03 | 0.63 | 8.61 | 16.84 | 20.33 | -20.51 | 61.52 | 0.3831 | 1009.6 | 832.2 | |
| 0.00 | 2.52 | 0.00 | 1.36 | 17.80 | 20.22 | -20.62 | 59.40 | 0.3912 | 974.0 | 616.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 18.17 | 20.11 | -20.73 | 58.68 | 0.3954 | 554.0 | 433.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 17.61 | 20.11 | -20.73 | 59.96 | 0.3914 | 825.0 | 662.8 | |
| 1.80 | -31.00 | 0.97 | -31.00 | 17.26 | 20.01 | -20.83 | 60.86 | 0.3904 | 883.6 | 999999 | |
| 0.99 | -31.00 | 0.53 | -31.00 | 17.08 | 20.03 | -20.81 | 61.27 | 0.3888 | 995.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 17.35 | 19.69 | -21.14 | 60.99 | 0.3953 | 726.0 | 585.4 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 17.01 | 19.70 | -21.14 | 61.78 | 0.3930 | 964.0 | 830.6 | |
| 4.68 | 16.58 | 2.53 | 8.95 | 17.02 | 19.32 | -21.51 | 62.11 | 0.3984 | 856.1 | 470.8 | |
| 9.01 | 26.93 | 4.85 | 14.48 | 16.16 | 19.42 | -21.41 | 64.04 | 0.3917 | 1127.5 | 596.5 | |
| 6.22 | -39.00 | 3.35 | -39.00 | 16.83 | 19.24 | -21.59 | 62.62 | 0.3984 | 976.8 | 999999 | |
| 3.15 | 6.31 | 1.70 | 3.40 | 16.20 | 18.98 | -21.86 | 64.33 | 0.3984 | 817.6 | 701.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 16.79 | 18.91 | -21.93 | 63.04 | 0.4029 | 486.0 | 405.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
