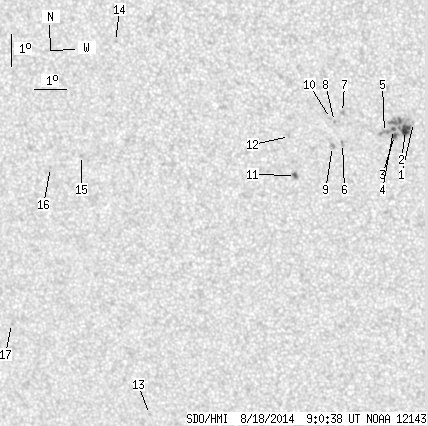

SDO HMI 2014-08-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.73 | 51.33 | 4.97 | 26.40 | -4.62 | 30.79 | -10.05 | 139.23 | 0.2644 | 332.8 | 509.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.50 | -4.00 | 32.82 | -8.02 | 143.19 | 0.2333 | 311.0 | 248.9 | |
| 6.13 | 28.92 | 3.12 | 14.75 | -4.25 | 32.57 | -8.27 | 142.98 | 0.2393 | 1118.3 | 837.7 | |
| 1.80 | -2.00 | 0.92 | -2.00 | -4.41 | 32.23 | -8.61 | 142.26 | 0.2449 | 929.7 | 999999 | |
| 0.63 | -2.00 | 0.32 | -2.00 | -4.23 | 32.20 | -8.64 | 141.70 | 0.2428 | 1143.0 | 999999 | |
| 0.00 | 3.60 | 0.00 | 1.84 | -4.32 | 31.92 | -8.92 | 141.06 | 0.2470 | 899.0 | 767.2 | |
| 0.00 | 2.43 | 0.00 | 1.25 | -4.69 | 30.62 | -10.22 | 138.10 | 0.2659 | 836.0 | 642.5 | |
| 0.00 | 2.34 | 0.00 | 1.20 | -3.73 | 30.63 | -10.20 | 135.61 | 0.2539 | 1090.0 | 784.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -4.01 | 30.38 | -10.46 | 135.68 | 0.2603 | 850.0 | 754.4 | |
| 0.00 | 2.61 | 0.00 | 1.34 | -4.79 | 30.31 | -10.53 | 137.48 | 0.2707 | 661.0 | 528.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -3.92 | 30.26 | -10.58 | 135.10 | 0.2606 | 837.0 | 572.5 | |
| 1.17 | 2.52 | 0.61 | 1.31 | -5.71 | 29.14 | -11.70 | 136.69 | 0.2954 | -1022.2 | -851.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -4.51 | 28.98 | -11.86 | 133.33 | 0.2829 | -795.0 | -607.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -13.42 | 24.15 | -16.69 | 140.64 | 0.4422 | -780.0 | -621.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -1.74 | 23.55 | -17.29 | 115.69 | 0.3310 | -757.0 | -647.8 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -5.30 | 22.39 | -18.45 | 122.82 | 0.3766 | -817.0 | -603.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -5.71 | 21.37 | -19.46 | 122.30 | 0.3939 | -728.0 | -515.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -10.67 | 19.83 | -21.01 | 129.67 | 0.4597 | -524.0 | -481.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
