SDO HMI 2014-08-18 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.97 | 211.81 | 26.84 | 111.00 | 13.97 | 57.54 | 17.81 | 294.16 | 0.3268 | -518.8 | -315.0 | |
|
previous
or next observation for the same group /

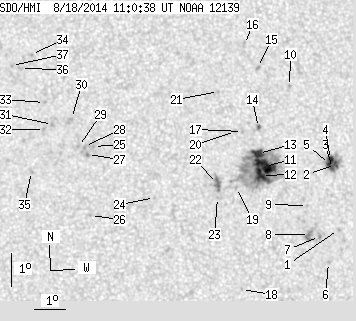

back to the solar disc SDO HMI 2014-08-18 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.72 | 11.88 | 60.26 | 20.52 | 285.68 | 0.3579 | -838.0 | -653.4 | |
| 2.70 | 21.62 | 1.44 | 11.50 | 13.87 | 60.34 | 20.60 | 290.94 | 0.3673 | -1092.7 | -530.8 | |
| 2.07 | -2.00 | 1.10 | -2.00 | 13.75 | 60.23 | 20.49 | 290.72 | 0.3650 | -1033.3 | 999999 | |
| 3.78 | -2.00 | 2.01 | -2.00 | 14.03 | 60.18 | 20.45 | 291.48 | 0.3658 | -1118.2 | 999999 | |
| 2.25 | -2.00 | 1.20 | -2.00 | 13.88 | 60.14 | 20.40 | 291.12 | 0.3643 | -1312.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 10.89 | 59.86 | 20.12 | 283.13 | 0.3483 | -813.0 | -685.0 | |
| 0.00 | 2.16 | 0.00 | 1.14 | 11.70 | 59.62 | 19.88 | 285.54 | 0.3472 | -951.0 | -799.6 | |
| 0.00 | 8.11 | 0.00 | 4.27 | 11.77 | 59.30 | 19.56 | 285.95 | 0.3423 | -1142.0 | -917.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 12.66 | 59.30 | 19.56 | 288.45 | 0.3459 | -789.0 | -554.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 16.32 | 59.04 | 19.30 | 298.47 | 0.3624 | -734.0 | -624.0 | |
| 20.35 | 132.21 | 10.69 | 69.33 | 13.90 | 57.98 | 18.25 | 293.11 | 0.3319 | -1200.5 | -476.0 | |
| 11.80 | -11.00 | 6.19 | -11.00 | 13.63 | 57.86 | 18.13 | 292.45 | 0.3286 | -1237.0 | 999999 | |
| 7.39 | -11.00 | 3.88 | -11.00 | 14.30 | 57.82 | 18.08 | 294.42 | 0.3318 | -958.1 | 999999 | |
| 0.63 | 1.80 | 0.33 | 0.95 | 15.10 | 57.89 | 18.15 | 296.56 | 0.3377 | -910.1 | -805.6 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 16.94 | 58.03 | 18.30 | 301.24 | 0.3527 | -792.0 | -733.2 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 17.67 | 57.67 | 17.94 | 303.51 | 0.3535 | -719.0 | -552.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.00 | 57.35 | 17.61 | 296.89 | 0.3292 | -806.0 | -622.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 10.18 | 56.98 | 17.24 | 282.48 | 0.3000 | -606.0 | -535.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 13.29 | 57.02 | 17.28 | 292.30 | 0.3138 | -844.0 | -648.1 | |
| 0.00 | 2.43 | 0.00 | 1.27 | 15.00 | 57.12 | 17.38 | 297.19 | 0.3259 | -819.0 | -575.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.25 | 56.67 | 16.93 | 301.21 | 0.3284 | -845.0 | -657.4 | |
| 0.00 | 8.47 | 0.00 | 4.40 | 13.44 | 56.41 | 16.67 | 293.39 | 0.3053 | 838.0 | 628.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 13.01 | 56.38 | 16.64 | 292.10 | 0.3025 | 715.0 | 582.7 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 13.07 | 54.34 | 14.61 | 294.77 | 0.2717 | 704.0 | 473.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 14.69 | 52.48 | 12.74 | 303.34 | 0.2565 | 840.0 | 698.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 12.58 | 52.27 | 12.53 | 296.13 | 0.2369 | 752.0 | 483.7 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 14.45 | 52.27 | 12.54 | 302.93 | 0.2515 | 947.0 | 830.1 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 14.70 | 52.19 | 12.45 | 303.94 | 0.2526 | 907.0 | 759.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 14.70 | 52.00 | 12.26 | 304.35 | 0.2499 | 945.0 | 788.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 15.56 | 51.83 | 12.09 | 307.58 | 0.2557 | 651.0 | 564.3 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 15.40 | 51.20 | 11.47 | 308.43 | 0.2457 | 903.0 | 650.8 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 15.25 | 50.94 | 11.20 | 308.56 | 0.2408 | 891.0 | 662.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.08 | 50.99 | 11.25 | 311.13 | 0.2500 | 729.0 | 618.2 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 17.56 | 50.66 | 10.92 | 316.33 | 0.2627 | 789.0 | 621.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 13.97 | 50.46 | 10.72 | 305.17 | 0.2218 | 852.0 | 675.9 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 17.14 | 50.28 | 10.54 | 316.12 | 0.2532 | 978.0 | 765.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.24 | 49.99 | 10.25 | 317.16 | 0.2511 | 718.0 | 651.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
