SDO HMI 2014-08-18 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.17 | 338.07 | 40.80 | 175.53 | 16.28 | 25.32 | -14.42 | 53.68 | 0.2947 | -103.3 | -90.8 | |
|
previous
or next observation for the same group /

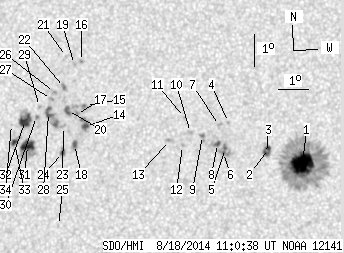

back to the solar disc SDO HMI 2014-08-18 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.58 | 187.87 | 18.19 | 96.04 | 15.89 | 28.50 | -11.24 | 49.44 | 0.2479 | -1319.7 | -378.0 | |
| 2.25 | 8.65 | 1.16 | 4.44 | 16.33 | 27.37 | -12.36 | 50.66 | 0.2669 | -1038.2 | -660.1 | |
| 2.34 | -2.00 | 1.20 | -2.00 | 16.17 | 27.32 | -12.42 | 51.25 | 0.2660 | -1075.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.09 | 26.02 | -13.72 | 51.20 | 0.2921 | -719.0 | -544.7 | |
| 0.72 | 9.19 | 0.37 | 4.75 | 16.29 | 25.98 | -13.76 | 53.57 | 0.2850 | -1154.0 | -826.5 | |
| 0.63 | -5.00 | 0.33 | -5.00 | 16.17 | 25.92 | -13.81 | 54.05 | 0.2846 | -1012.0 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.40 | 16.99 | 25.73 | -14.00 | 52.03 | 0.2949 | -665.0 | -610.8 | |
| 1.53 | 5.22 | 0.79 | 2.70 | 16.44 | 25.71 | -14.03 | 53.65 | 0.2900 | -990.2 | -725.0 | |
| 0.36 | 3.51 | 0.19 | 1.82 | 16.67 | 25.20 | -14.54 | 53.90 | 0.2989 | -883.0 | -704.9 | |
| 0.00 | 2.61 | 0.00 | 1.36 | 16.75 | 24.80 | -14.94 | 54.36 | 0.3050 | -711.0 | -567.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.21 | 24.57 | -15.17 | 53.51 | 0.3123 | -731.0 | -544.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 16.34 | 24.57 | -15.17 | 55.88 | 0.3046 | -459.0 | -358.8 | |
| 0.00 | 2.52 | 0.00 | 1.31 | 16.49 | 24.13 | -15.60 | 56.19 | 0.3118 | -905.0 | -676.1 | |
| 2.34 | 8.20 | 1.24 | 4.34 | 16.83 | 21.32 | -18.42 | 59.21 | 0.3536 | 1213.6 | 922.5 | |
| 0.00 | 2.88 | 0.00 | 1.53 | 17.47 | 21.25 | -18.48 | 57.68 | 0.3594 | 817.0 | 730.8 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 18.83 | 20.97 | -18.77 | 54.82 | 0.3742 | 887.0 | 710.3 | |
| 0.00 | 2.70 | 0.00 | 1.43 | 17.19 | 20.98 | -18.76 | 58.73 | 0.3610 | 1011.0 | 855.8 | |
| 2.07 | 5.40 | 1.10 | 2.86 | 16.26 | 21.01 | -18.73 | 61.03 | 0.3539 | 1109.8 | 861.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 18.73 | 20.75 | -18.99 | 55.34 | 0.3763 | 855.0 | 608.1 | |
| 2.25 | 7.57 | 1.20 | 4.02 | 17.30 | 20.67 | -19.07 | 58.83 | 0.3662 | 1021.4 | 826.8 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 18.97 | 20.45 | -19.29 | 55.18 | 0.3822 | 611.0 | 439.1 | |
| 0.45 | 3.33 | 0.24 | 1.78 | 18.00 | 20.49 | -19.25 | 57.35 | 0.3740 | 956.4 | 766.0 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 16.80 | 20.59 | -19.15 | 60.15 | 0.3637 | 830.0 | 741.5 | |
| 1.80 | 3.78 | 0.95 | 2.01 | 16.00 | 20.63 | -19.11 | 62.12 | 0.3575 | 989.5 | 806.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 13.76 | 20.70 | -19.04 | 68.03 | 0.3431 | 637.0 | 517.8 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 17.84 | 20.17 | -19.57 | 58.13 | 0.3771 | 839.0 | 670.6 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 17.62 | 20.09 | -19.65 | 58.74 | 0.3765 | 758.0 | 655.7 | |
| 3.51 | 14.41 | 1.88 | 7.68 | 17.21 | 20.04 | -19.70 | 59.77 | 0.3743 | 930.3 | 837.8 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 17.39 | 19.71 | -20.03 | 59.71 | 0.3801 | 787.0 | 554.9 | |
| 0.36 | 1.53 | 0.19 | 0.82 | 17.07 | 19.65 | -20.09 | 60.53 | 0.3788 | 882.5 | 800.6 | |
| 10.18 | 25.76 | 5.44 | 13.75 | 16.17 | 19.44 | -20.30 | 62.94 | 0.3757 | 1070.0 | 520.0 | |
| 9.55 | 17.65 | 5.12 | 9.46 | 16.94 | 19.29 | -20.45 | 61.24 | 0.3829 | 939.5 | 368.5 | |
| 2.25 | 5.76 | 1.21 | 3.09 | 16.25 | 18.99 | -20.75 | 63.20 | 0.3826 | 822.0 | 667.4 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 16.80 | 18.83 | -20.91 | 62.04 | 0.3884 | 430.0 | 347.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
