SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.21 | 0.00 | 3.65 | -18.52 | 58.07 | 19.44 | 215.98 | 0.5291 | 116.5 | 278.9 | |
|
previous
or next observation for the same group /

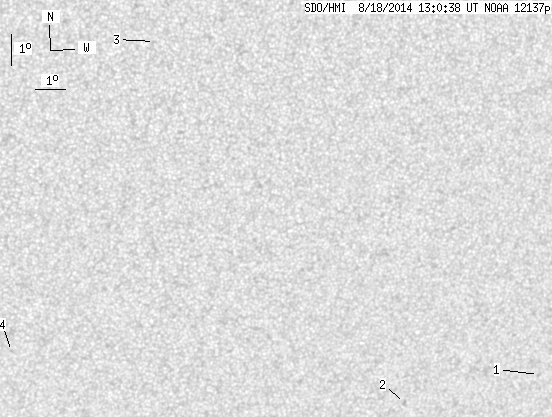

back to the solar disc SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.96 | -20.60 | 65.44 | 26.80 | 223.29 | 0.6178 | 452.0 | 451.8 | |
| 0.00 | 2.34 | 0.00 | 1.42 | -21.31 | 60.77 | 22.13 | 217.19 | 0.5830 | 741.0 | 623.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -9.12 | 51.43 | 12.80 | 218.89 | 0.3498 | 24.0 | -0.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.10 | 47.33 | 8.69 | 198.16 | 0.4600 | -751.0 | -502.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
