SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.36 | 345.27 | 38.59 | 178.36 | 16.28 | 25.43 | -13.21 | 51.26 | 0.2787 | -98.6 | -72.5 | |
|
previous
or next observation for the same group /

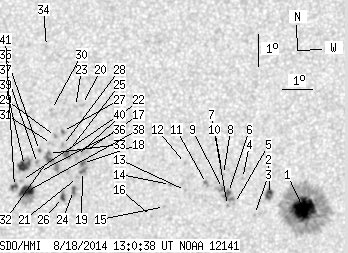

back to the solar disc SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.11 | 198.90 | 18.39 | 101.31 | 15.88 | 28.49 | -10.15 | 46.67 | 0.2340 | -1261.2 | -357.2 | |
| 4.23 | 6.48 | 2.17 | 3.32 | 16.29 | 27.38 | -11.26 | 48.25 | 0.2524 | -998.3 | -667.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.66 | 26.93 | -11.71 | 51.27 | 0.2516 | -839.0 | -654.4 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 16.76 | 26.47 | -12.16 | 48.93 | 0.2688 | -823.0 | -683.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.98 | 26.26 | -12.37 | 51.72 | 0.2636 | -805.0 | -661.4 | |
| 1.35 | 8.64 | 0.69 | 4.44 | 16.32 | 26.05 | -12.59 | 51.16 | 0.2697 | -1101.8 | -861.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.92 | 26.04 | -12.60 | 52.40 | 0.2659 | -786.0 | -627.8 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 16.87 | 25.85 | -12.79 | 49.97 | 0.2779 | -851.0 | -750.4 | |
| 0.54 | 4.86 | 0.28 | 2.50 | 16.44 | 25.85 | -12.79 | 51.23 | 0.2736 | -1008.2 | -762.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 17.08 | 25.77 | -12.87 | 49.52 | 0.2811 | -679.0 | -571.2 | |
| 0.00 | 2.88 | 0.00 | 1.49 | 16.58 | 25.32 | -13.32 | 51.89 | 0.2819 | -905.0 | -768.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.18 | 24.59 | -14.05 | 51.60 | 0.2972 | -658.0 | -577.6 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 16.34 | 24.65 | -13.99 | 53.84 | 0.2885 | -604.0 | -404.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.52 | 24.15 | -14.49 | 54.25 | 0.2969 | -842.0 | -683.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.83 | 24.00 | -14.64 | 56.48 | 0.2929 | -791.0 | -660.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 15.52 | 23.60 | -15.04 | 58.07 | 0.2958 | -744.0 | -544.7 | |
| 0.00 | 5.58 | 0.00 | 2.94 | 17.45 | 21.23 | -17.41 | 56.32 | 0.3445 | 898.0 | 723.5 | |
| 0.99 | 8.73 | 0.52 | 4.60 | 17.07 | 21.20 | -17.44 | 57.31 | 0.3419 | 1074.4 | 830.6 | |
| 1.17 | -18.00 | 0.62 | -18.00 | 16.83 | 21.22 | -17.42 | 57.91 | 0.3396 | 1151.7 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 18.90 | 21.01 | -17.62 | 53.09 | 0.3598 | 855.0 | 673.9 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 16.64 | 21.07 | -17.56 | 58.60 | 0.3402 | 834.0 | 696.9 | |
| 0.00 | 4.41 | 0.00 | 2.33 | 17.31 | 20.98 | -17.66 | 57.00 | 0.3469 | 737.0 | 778.5 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 18.83 | 20.79 | -17.85 | 53.58 | 0.3621 | 779.0 | 577.2 | |
| 1.53 | 5.04 | 0.81 | 2.65 | 16.23 | 20.98 | -17.66 | 59.79 | 0.3385 | 1078.9 | 857.0 | |
| 1.71 | 5.85 | 0.90 | 3.09 | 17.36 | 20.64 | -18.00 | 57.32 | 0.3519 | 1014.6 | 883.7 | |
| 1.80 | 3.42 | 0.95 | 1.80 | 16.01 | 20.63 | -18.00 | 60.82 | 0.3417 | 901.8 | 775.3 | |
| 0.45 | 1.71 | 0.24 | 0.91 | 18.04 | 20.43 | -18.21 | 55.94 | 0.3601 | 928.8 | 784.4 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 17.61 | 20.48 | -18.16 | 56.93 | 0.3560 | 851.0 | 749.3 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 17.88 | 20.21 | -18.42 | 56.62 | 0.3618 | 831.0 | 620.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 18.71 | 19.99 | -18.65 | 54.95 | 0.3716 | 624.0 | 494.8 | |
| 0.00 | 2.61 | 0.00 | 1.39 | 17.66 | 20.10 | -18.53 | 57.30 | 0.3615 | 782.0 | 580.6 | |
| 2.52 | 13.87 | 1.34 | 7.35 | 17.16 | 20.05 | -18.58 | 58.58 | 0.3584 | 1006.0 | 826.7 | |
| 0.45 | -32.00 | 0.24 | -32.00 | 17.34 | 20.04 | -18.60 | 58.15 | 0.3600 | 858.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.66 | 19.58 | -19.06 | 51.17 | 0.3938 | 837.0 | 719.1 | |
| 0.36 | 1.71 | 0.19 | 0.91 | 17.43 | 19.72 | -18.91 | 58.33 | 0.3649 | 612.5 | 475.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 16.78 | 19.79 | -18.85 | 59.85 | 0.3592 | 817.0 | 638.9 | |
| 0.00 | 2.61 | 0.00 | 1.39 | 17.02 | 19.70 | -18.94 | 59.35 | 0.3623 | 812.0 | 745.7 | |
| 10.71 | 24.85 | 5.69 | 13.18 | 16.15 | 19.42 | -19.22 | 61.86 | 0.3601 | 1083.3 | 578.3 | |
| 8.28 | 13.42 | 4.41 | 7.14 | 16.95 | 19.27 | -19.37 | 60.04 | 0.3677 | 946.7 | 626.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 16.48 | 19.22 | -19.42 | 61.25 | 0.3652 | 876.0 | 617.1 | |
| 2.16 | 5.13 | 1.15 | 2.73 | 16.29 | 19.00 | -19.63 | 61.96 | 0.3670 | 860.4 | 525.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
