SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.33 | 226.80 | 34.53 | 194.41 | 8.28 | 343.51 | -55.13 | 84.64 | 0.8176 | -588.7 | -221.2 | |
|
previous
or next observation for the same group /

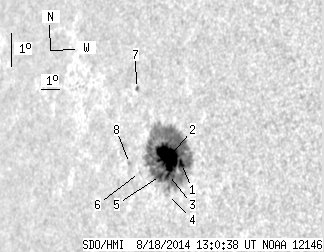

back to the solar disc SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 219.51 | 2.65 | 188.00 | 8.25 | 344.23 | -54.41 | 84.71 | 0.8104 | -918.3 | -230.9 | |
| 31.15 | -1.00 | 26.68 | -1.00 | 8.37 | 343.51 | -55.13 | 84.53 | 0.8176 | -740.0 | 999999 | |
| 2.79 | -1.00 | 2.38 | -1.00 | 7.85 | 343.61 | -55.02 | 85.17 | 0.8168 | -650.0 | 999999 | |
| 0.00 | 3.15 | 0.00 | 2.69 | 7.25 | 343.67 | -54.96 | 85.91 | 0.8165 | -172.0 | -131.9 | |
| 2.88 | -1.00 | 2.49 | -1.00 | 7.78 | 343.19 | -55.44 | 85.23 | 0.8210 | 285.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.96 | 7.76 | 342.04 | -56.60 | 85.18 | 0.8322 | -279.0 | -200.4 | |
| 0.36 | 1.62 | 0.33 | 1.46 | 10.26 | 341.26 | -57.38 | 82.15 | 0.8387 | 378.0 | 319.6 | |
| 0.00 | 1.44 | 0.00 | 1.30 | 7.98 | 341.43 | -57.21 | 84.88 | 0.8379 | 277.0 | 255.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
