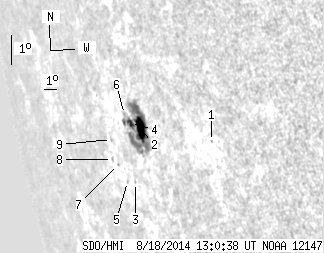

SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.92 | 85.53 | 24.76 | 119.37 | -9.55 | 331.21 | -67.43 | 102.95 | 0.9358 | 297.1 | 65.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 1.21 | -9.33 | 336.68 | -61.96 | 103.91 | 0.8991 | 379.0 | 359.6 | |
| 14.41 | 78.33 | 19.77 | 108.76 | -9.49 | 331.48 | -67.16 | 102.94 | 0.9342 | 447.6 | 90.1 | |
| 0.00 | 0.27 | 0.00 | 0.40 | -11.32 | 330.22 | -68.42 | 104.60 | 0.9437 | 275.0 | 266.3 | |
| 3.51 | -2.00 | 4.99 | -2.00 | -9.42 | 330.69 | -67.95 | 102.71 | 0.9388 | 228.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.65 | -11.37 | 329.50 | -69.13 | 104.51 | 0.9476 | -234.0 | -192.8 | |
| 0.00 | 1.53 | 0.00 | 2.21 | -9.18 | 330.29 | -68.35 | 102.38 | 0.9409 | -65.0 | -17.2 | |
| 0.00 | 0.90 | 0.00 | 1.41 | -10.90 | 328.95 | -69.68 | 103.91 | 0.9501 | -273.0 | -213.0 | |
| 0.00 | 1.17 | 0.00 | 1.88 | -10.80 | 328.46 | -70.18 | 103.70 | 0.9525 | -320.0 | -304.0 | |
| 0.00 | 1.17 | 0.00 | 1.85 | -10.14 | 328.71 | -69.93 | 103.07 | 0.9506 | -315.0 | -369.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
