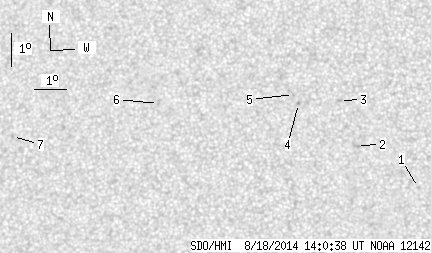

SDO HMI 2014-08-18 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.63 | 0.00 | 4.90 | 8.77 | 26.25 | -11.83 | 79.26 | 0.2070 | -373.7 | -365.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.08 | 30.69 | -7.40 | 87.20 | 0.1285 | -789.0 | -541.2 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 8.33 | 28.75 | -9.34 | 79.92 | 0.1638 | -716.0 | -684.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.68 | 28.18 | -9.90 | 72.83 | 0.1782 | -966.0 | -781.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 9.57 | 26.90 | -11.18 | 75.12 | 0.1987 | -879.0 | -718.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 9.84 | 26.74 | -11.35 | 74.01 | 0.2026 | -751.0 | -626.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 9.45 | 22.48 | -15.61 | 79.14 | 0.2714 | 708.0 | 511.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 8.29 | 17.82 | -20.26 | 84.41 | 0.3458 | 777.0 | 612.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
