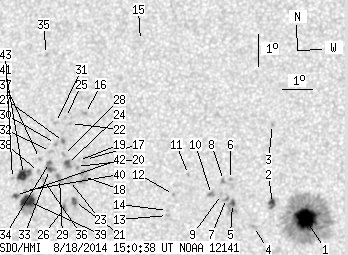

SDO HMI 2014-08-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.49 | 333.56 | 35.39 | 171.63 | 16.31 | 25.43 | -12.10 | 48.69 | 0.2649 | -0.5 | -100.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.48 | 187.94 | 17.00 | 95.43 | 15.87 | 28.48 | -9.05 | 43.54 | 0.2207 | -1303.0 | -395.5 | |
| 3.51 | 5.85 | 1.79 | 2.98 | 16.31 | 27.40 | -10.13 | 45.27 | 0.2387 | -935.4 | -645.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 18.75 | 27.27 | -10.27 | 38.91 | 0.2699 | -820.0 | -718.1 | |
| 0.00 | 3.15 | 0.00 | 1.61 | 15.59 | 26.83 | -10.70 | 49.08 | 0.2378 | -816.0 | -620.2 | |
| 1.62 | 10.62 | 0.83 | 5.44 | 16.28 | 26.12 | -11.42 | 48.64 | 0.2543 | -1144.2 | -826.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.02 | 26.01 | -11.53 | 46.71 | 0.2637 | -862.0 | -727.8 | |
| 0.00 | 3.33 | 0.00 | 1.71 | 16.43 | 25.91 | -11.62 | 48.66 | 0.2585 | -1038.0 | -791.6 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 16.99 | 25.78 | -11.75 | 47.34 | 0.2660 | -801.0 | -655.9 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 16.55 | 25.74 | -11.79 | 48.70 | 0.2619 | -756.0 | -686.0 | |
| 0.00 | 3.51 | 0.00 | 1.80 | 16.55 | 25.42 | -12.11 | 49.45 | 0.2659 | -912.0 | -798.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 17.14 | 24.64 | -12.90 | 49.42 | 0.2821 | -662.0 | -481.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.52 | 24.19 | -13.34 | 52.12 | 0.2816 | -829.0 | -714.7 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 15.87 | 24.04 | -13.49 | 54.35 | 0.2774 | -974.0 | -782.2 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 16.02 | 24.03 | -13.50 | 53.91 | 0.2790 | -817.0 | -658.1 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 21.26 | 22.70 | -14.84 | 43.25 | 0.3498 | 15.0 | 2.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 18.94 | 21.09 | -16.45 | 51.23 | 0.3450 | 895.0 | 716.9 | |
| 0.00 | 3.15 | 0.00 | 1.65 | 17.51 | 21.22 | -16.31 | 54.55 | 0.3302 | 371.0 | 725.1 | |
| 0.00 | 9.27 | 0.00 | 4.86 | 16.99 | 21.20 | -16.33 | 55.95 | 0.3260 | 644.0 | 813.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.48 | 20.99 | -16.54 | 54.99 | 0.3330 | 884.0 | 685.2 | |
| 0.00 | 2.25 | 0.00 | 1.18 | 17.29 | 20.94 | -16.59 | 55.55 | 0.3320 | 866.0 | 847.3 | |
| 2.25 | 3.96 | 1.18 | 2.07 | 16.21 | 20.97 | -16.56 | 58.39 | 0.3228 | 1086.7 | 840.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.61 | 20.62 | -16.92 | 52.74 | 0.3480 | 973.0 | 789.6 | |
| 0.00 | 5.13 | 0.00 | 2.69 | 16.85 | 20.75 | -16.78 | 56.98 | 0.3310 | 872.0 | 778.6 | |
| 1.89 | 4.86 | 0.99 | 2.56 | 17.37 | 20.64 | -16.90 | 55.79 | 0.3369 | 1079.7 | 949.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.79 | 20.43 | -17.10 | 52.59 | 0.3520 | 622.0 | 553.9 | |
| 0.00 | 3.51 | 0.00 | 1.84 | 16.01 | 20.66 | -16.87 | 59.35 | 0.3257 | 965.0 | 845.6 | |
| 0.45 | 2.07 | 0.24 | 1.09 | 18.05 | 20.44 | -17.09 | 54.38 | 0.3453 | 1049.6 | 830.6 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 17.64 | 20.48 | -17.06 | 55.32 | 0.3413 | 868.0 | 759.5 | |
| 0.00 | 4.41 | 0.00 | 2.32 | 16.90 | 20.42 | -17.12 | 57.32 | 0.3360 | 1028.0 | 845.7 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 17.98 | 20.18 | -17.35 | 54.93 | 0.3482 | 757.0 | 664.9 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 18.62 | 20.11 | -17.42 | 53.45 | 0.3547 | 698.0 | 508.0 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 17.72 | 20.04 | -17.50 | 55.75 | 0.3479 | 793.0 | 661.2 | |
| 1.53 | 7.38 | 0.81 | 3.89 | 17.17 | 20.06 | -17.48 | 57.12 | 0.3431 | 1071.1 | 824.3 | |
| 0.90 | -33.00 | 0.47 | -33.00 | 17.38 | 20.04 | -17.50 | 56.61 | 0.3451 | 830.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 20.73 | 19.57 | -17.96 | 49.50 | 0.3809 | 816.0 | 658.1 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 16.85 | 19.89 | -17.64 | 58.16 | 0.3430 | 938.0 | 689.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 17.49 | 19.69 | -17.84 | 56.79 | 0.3508 | 738.0 | 635.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 17.09 | 19.70 | -17.83 | 57.79 | 0.3475 | 816.0 | 710.4 | |
| 12.33 | 25.38 | 6.50 | 13.38 | 16.16 | 19.46 | -18.08 | 60.52 | 0.3439 | 1112.7 | 569.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 16.49 | 19.32 | -18.21 | 59.81 | 0.3482 | 798.0 | 653.5 | |
| 9.27 | 12.87 | 4.91 | 6.81 | 16.98 | 19.21 | -18.32 | 58.70 | 0.3534 | 936.5 | 692.8 | |
| 1.26 | 2.16 | 0.67 | 1.14 | 16.33 | 19.01 | -18.53 | 60.62 | 0.3515 | 918.4 | 721.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 16.85 | 18.85 | -18.68 | 59.48 | 0.3574 | 486.0 | 341.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
