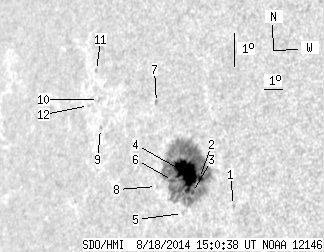

SDO HMI 2014-08-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.68 | 235.74 | 33.91 | 197.38 | 8.37 | 343.39 | -54.14 | 84.59 | 0.8075 | -571.0 | -201.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.92 | 7.60 | 346.02 | -51.51 | 85.69 | 0.7803 | -513.0 | -459.7 | |
| 2.52 | 227.64 | 2.07 | 190.05 | 8.26 | 344.19 | -53.35 | 84.76 | 0.7995 | -957.7 | -219.4 | |
| 0.90 | -2.00 | 0.74 | -2.00 | 7.81 | 343.91 | -53.62 | 85.31 | 0.8026 | -668.1 | 999999 | |
| 35.55 | -2.00 | 29.65 | -2.00 | 8.35 | 343.49 | -54.04 | 84.61 | 0.8066 | -772.4 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 7.13 | 343.51 | -54.02 | 86.13 | 0.8070 | -329.0 | -243.7 | |
| 1.71 | -2.00 | 1.45 | -2.00 | 8.07 | 342.81 | -54.73 | 84.92 | 0.8137 | 372.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.58 | 10.33 | 341.41 | -56.13 | 82.11 | 0.8268 | 420.0 | 335.2 | |
| 0.00 | 0.63 | 0.00 | 0.54 | 7.81 | 342.00 | -55.54 | 85.20 | 0.8219 | -248.0 | -186.6 | |
| 0.00 | 1.35 | 0.00 | 1.28 | 9.24 | 338.46 | -59.08 | 83.30 | 0.8546 | 548.0 | 436.8 | |
| 0.00 | 0.72 | 0.00 | 0.69 | 10.09 | 338.09 | -59.44 | 82.28 | 0.8576 | 516.0 | 461.8 | |
| 0.00 | 1.26 | 0.00 | 1.22 | 10.95 | 337.70 | -59.83 | 81.28 | 0.8608 | 241.0 | 299.1 | |
| 0.00 | 0.90 | 0.00 | 0.87 | 9.85 | 337.55 | -59.98 | 82.54 | 0.8624 | 271.0 | 244.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
