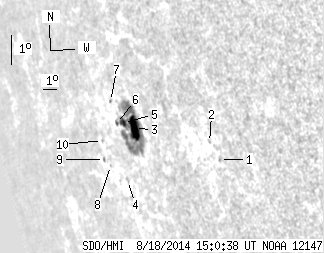

SDO HMI 2014-08-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.32 | 92.44 | 29.46 | 122.63 | -9.53 | 331.30 | -66.23 | 103.18 | 0.9284 | 383.0 | 80.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 1.15 | -9.84 | 337.24 | -60.30 | 104.88 | 0.8874 | 434.0 | 375.6 | |
| 0.00 | 0.99 | 0.00 | 1.07 | -9.36 | 336.75 | -60.78 | 104.23 | 0.8903 | 479.0 | 389.9 | |
| 17.82 | 85.42 | 23.34 | 113.19 | -9.48 | 331.50 | -66.03 | 103.17 | 0.9272 | 512.9 | 83.4 | |
| 0.00 | 1.53 | 0.00 | 2.16 | -11.26 | 330.18 | -67.36 | 104.77 | 0.9376 | 374.0 | 266.9 | |
| 3.96 | -3.00 | 5.37 | -3.00 | -9.39 | 330.68 | -66.85 | 102.90 | 0.9322 | 244.9 | 999999 | |
| 0.54 | -3.00 | 0.75 | -3.00 | -9.48 | 330.08 | -67.45 | 102.88 | 0.9360 | -29.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 1.13 | -8.82 | 329.86 | -67.67 | 102.14 | 0.9365 | 390.0 | 319.7 | |
| 0.00 | 0.27 | 0.00 | 0.40 | -10.93 | 328.92 | -68.61 | 104.16 | 0.9443 | -262.0 | -240.0 | |
| 0.00 | 1.35 | 0.00 | 2.05 | -10.79 | 328.47 | -69.06 | 103.92 | 0.9466 | -237.0 | -274.5 | |
| 0.00 | 0.99 | 0.00 | 1.48 | -10.18 | 328.60 | -68.94 | 103.31 | 0.9453 | -478.0 | -425.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
