SDO HMI 2014-08-18 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.60 | 238.32 | 32.61 | 196.83 | 8.36 | 343.38 | -53.60 | 84.63 | 0.8019 | -627.3 | -223.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

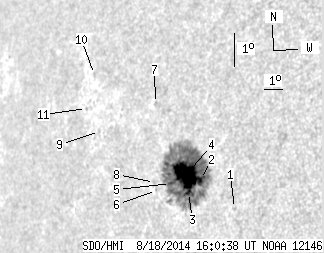

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.40 | 7.60 | 346.07 | -50.91 | 85.73 | 0.7738 | -599.0 | -476.8 | |
| 0.27 | 229.05 | 0.22 | 188.72 | 8.32 | 344.25 | -52.74 | 84.72 | 0.7931 | -1000.3 | -241.7 | |
| 3.06 | -2.00 | 2.51 | -2.00 | 7.87 | 343.71 | -53.27 | 85.25 | 0.7988 | -753.4 | 999999 | |
| 35.46 | -2.00 | 29.20 | -2.00 | 8.37 | 343.46 | -53.52 | 84.62 | 0.8012 | -817.9 | 999999 | |
| 0.81 | -2.00 | 0.68 | -2.00 | 8.05 | 342.74 | -54.24 | 84.97 | 0.8088 | 341.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.00 | 7.77 | 342.05 | -54.93 | 85.27 | 0.8159 | -179.0 | -161.1 | |
| 0.00 | 1.98 | 0.00 | 1.71 | 10.38 | 341.40 | -55.58 | 82.06 | 0.8214 | 657.0 | 401.0 | |
| 0.00 | 0.99 | 0.00 | 0.85 | 8.00 | 341.90 | -55.08 | 84.98 | 0.8173 | 247.0 | 217.3 | |
| 0.00 | 0.90 | 0.00 | 0.84 | 9.24 | 338.51 | -58.47 | 83.33 | 0.8491 | 483.0 | 407.5 | |
| 0.00 | 1.62 | 0.00 | 1.54 | 10.91 | 337.72 | -59.26 | 81.33 | 0.8558 | 405.0 | 353.9 | |
| 0.00 | 0.81 | 0.00 | 0.77 | 9.85 | 337.56 | -59.42 | 82.57 | 0.8575 | 272.0 | 231.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
