SDO HMI 2014-08-18 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.74 | 243.07 | 18.68 | 129.73 | 13.97 | 57.32 | 20.89 | 291.31 | 0.3732 | -246.1 | -312.7 | |
|
previous
or next observation for the same group /

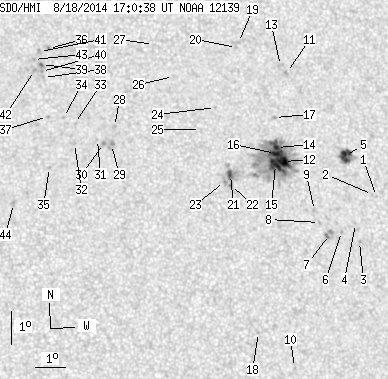

back to the solar disc SDO HMI 2014-08-18 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.39 | 12.61 | 61.19 | 24.76 | 285.32 | 0.4256 | -653.0 | -522.6 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 12.68 | 61.06 | 24.63 | 285.54 | 0.4238 | -723.0 | -643.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 11.27 | 60.48 | 24.05 | 282.44 | 0.4111 | -693.0 | -602.2 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 11.82 | 60.40 | 23.97 | 283.81 | 0.4112 | -705.0 | -579.4 | |
| 10.53 | 17.46 | 5.73 | 9.51 | 13.91 | 60.27 | 23.84 | 288.82 | 0.4163 | -1083.9 | -612.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 11.60 | 59.90 | 23.47 | 283.47 | 0.4029 | -715.0 | -626.3 | |
| 0.00 | 7.11 | 0.00 | 3.83 | 11.53 | 59.49 | 23.06 | 283.47 | 0.3964 | -590.0 | -792.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 11.91 | 59.19 | 22.76 | 284.55 | 0.3928 | -820.0 | -696.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 12.28 | 59.05 | 22.63 | 285.55 | 0.3919 | -784.0 | -673.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 7.55 | 58.04 | 21.62 | 273.37 | 0.3674 | -536.0 | -496.9 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 16.54 | 58.56 | 22.13 | 296.20 | 0.4042 | -848.0 | -758.4 | |
| 8.28 | 152.35 | 4.44 | 81.53 | 13.82 | 58.16 | 21.73 | 289.96 | 0.3841 | -1232.2 | -520.8 | |
| 0.00 | 2.52 | 0.00 | 1.36 | 16.76 | 58.38 | 21.96 | 296.87 | 0.4030 | -624.0 | -578.1 | |
| 2.34 | -12.00 | 1.25 | -12.00 | 14.26 | 57.97 | 21.54 | 291.20 | 0.3833 | -1035.6 | 999999 | |
| 6.93 | -12.00 | 3.71 | -12.00 | 13.74 | 57.88 | 21.45 | 289.96 | 0.3796 | -1358.1 | 999999 | |
| 3.60 | -12.00 | 1.93 | -12.00 | 14.08 | 57.91 | 21.49 | 290.78 | 0.3816 | -1291.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 15.18 | 58.00 | 21.57 | 293.45 | 0.3884 | -843.0 | -659.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 8.66 | 56.92 | 20.50 | 276.60 | 0.3500 | 11.0 | -6.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 17.53 | 57.05 | 20.62 | 299.97 | 0.3893 | -747.0 | -558.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 17.38 | 56.96 | 20.53 | 299.71 | 0.3870 | -845.0 | -710.8 | |
| 2.70 | 12.60 | 1.43 | 6.68 | 13.50 | 56.36 | 19.93 | 290.47 | 0.3553 | 761.8 | 102.4 | |
| 0.00 | 2.70 | 0.00 | 1.43 | 13.16 | 56.33 | 19.90 | 289.58 | 0.3533 | 838.0 | 640.5 | |
| 0.00 | 3.15 | 0.00 | 1.67 | 13.29 | 56.14 | 19.71 | 290.09 | 0.3510 | 1002.0 | 793.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 15.57 | 56.05 | 19.62 | 296.20 | 0.3621 | -800.0 | -580.3 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 14.91 | 55.49 | 19.06 | 295.06 | 0.3499 | -24.0 | -5.4 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 16.57 | 54.75 | 18.32 | 300.24 | 0.3503 | -29.0 | -45.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 17.58 | 54.19 | 17.76 | 303.52 | 0.3503 | -23.0 | -16.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 15.11 | 52.67 | 16.24 | 298.92 | 0.3099 | 648.0 | 508.4 | |
| 0.00 | 4.32 | 0.00 | 2.25 | 14.56 | 52.53 | 16.10 | 297.49 | 0.3039 | 893.0 | 741.9 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 14.60 | 52.27 | 15.84 | 297.96 | 0.3004 | 1067.0 | 837.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 14.73 | 52.08 | 15.66 | 298.60 | 0.2986 | 769.0 | 620.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 14.63 | 51.33 | 14.90 | 299.40 | 0.2869 | 848.0 | 708.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 15.24 | 51.37 | 14.95 | 301.22 | 0.2923 | 673.0 | 475.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.44 | 51.03 | 14.60 | 302.36 | 0.2890 | 830.0 | 551.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.92 | 50.47 | 14.05 | 298.43 | 0.2691 | 926.0 | 659.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 17.57 | 50.71 | 14.28 | 309.02 | 0.3040 | 863.0 | 717.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 15.48 | 50.51 | 14.09 | 303.38 | 0.2821 | 701.0 | 615.4 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 16.68 | 50.47 | 14.05 | 307.00 | 0.2924 | 846.0 | 601.4 | |
| 0.36 | 1.53 | 0.19 | 0.79 | 17.08 | 50.44 | 14.01 | 308.19 | 0.2958 | 984.0 | 822.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.87 | 50.42 | 13.99 | 307.62 | 0.2935 | 903.0 | 785.0 | |
| 0.00 | 2.34 | 0.00 | 1.21 | 17.49 | 50.40 | 13.98 | 309.36 | 0.2993 | 804.0 | 661.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 16.91 | 50.20 | 13.77 | 308.15 | 0.2909 | 972.0 | 857.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.25 | 50.19 | 13.76 | 309.11 | 0.2941 | 866.0 | 780.2 | |
| 0.00 | 3.06 | 0.00 | 1.56 | 12.85 | 49.26 | 12.83 | 296.62 | 0.2432 | 841.0 | 664.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
