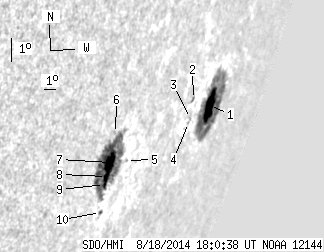

SDO HMI 2014-08-18 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.55 | 211.19 | 65.91 | 378.20 | -17.65 | 106.41 | 70.54 | 249.29 | 0.9595 | -33.2 | -115.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.97 | 102.04 | 45.58 | 224.53 | -17.25 | 109.70 | 73.83 | 250.44 | 0.9744 | 193.7 | -16.2 | |
| 0.00 | 1.71 | 0.00 | 3.19 | -16.80 | 107.51 | 71.64 | 250.45 | 0.9654 | 308.0 | 350.3 | |
| 0.00 | 0.99 | 0.00 | 1.90 | -17.45 | 107.82 | 71.95 | 249.86 | 0.9673 | 422.0 | 420.9 | |
| 0.00 | 0.99 | 0.00 | 1.89 | -17.57 | 107.73 | 71.86 | 249.72 | 0.9670 | 465.0 | 396.9 | |
| 0.00 | 0.72 | 0.00 | 1.06 | -18.22 | 102.62 | 66.75 | 247.87 | 0.9435 | 104.0 | 111.6 | |
| 0.00 | 0.90 | 0.00 | 1.22 | -17.16 | 100.99 | 65.11 | 248.55 | 0.9328 | -240.0 | -208.9 | |
| 11.16 | 102.31 | 15.51 | 142.19 | -18.14 | 101.28 | 65.41 | 247.62 | 0.9361 | -614.3 | -288.1 | |
| 2.61 | -7.00 | 3.66 | -7.00 | -18.60 | 101.31 | 65.44 | 247.15 | 0.9370 | -527.3 | 999999 | |
| 0.27 | -7.00 | 0.38 | -7.00 | -18.87 | 101.36 | 65.48 | 246.88 | 0.9376 | -464.0 | 999999 | |
| 0.54 | 1.53 | 0.78 | 2.22 | -19.84 | 101.80 | 65.93 | 246.00 | 0.9416 | -220.8 | -142.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
