SDO HMI 2014-08-18 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.75 | 232.34 | 27.47 | 124.92 | 14.14 | 57.23 | 21.91 | 290.98 | 0.3892 | -423.0 | -256.8 | |
|
previous
or next observation for the same group /

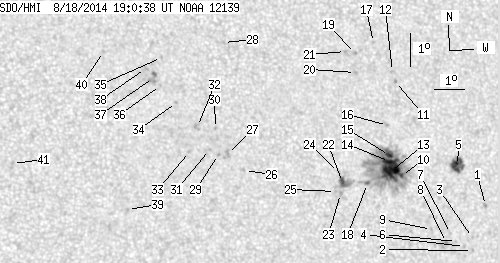

back to the solar disc SDO HMI 2014-08-18 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.84 | 12.60 | 61.11 | 25.79 | 284.84 | 0.4412 | -744.0 | -616.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 11.25 | 60.53 | 25.21 | 281.99 | 0.4288 | -527.0 | -529.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.65 | 60.57 | 25.25 | 282.89 | 0.4303 | -534.0 | -441.6 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 11.39 | 60.27 | 24.95 | 282.39 | 0.4251 | -790.0 | -572.8 | |
| 11.25 | 15.21 | 6.18 | 8.35 | 13.86 | 60.29 | 24.97 | 288.07 | 0.4329 | -1061.7 | -692.5 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 11.55 | 60.01 | 24.69 | 282.87 | 0.4216 | -819.0 | -678.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 11.81 | 59.83 | 24.51 | 283.53 | 0.4195 | -724.0 | -619.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 11.54 | 59.67 | 24.35 | 282.96 | 0.4163 | -918.0 | -853.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.96 | 59.20 | 23.88 | 284.15 | 0.4102 | -769.0 | -645.0 | |
| 1.44 | 154.13 | 0.78 | 83.12 | 13.65 | 58.35 | 23.03 | 288.67 | 0.4030 | -765.2 | -440.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 16.53 | 58.48 | 23.16 | 295.30 | 0.4188 | -873.0 | -776.7 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 16.85 | 58.42 | 23.10 | 296.05 | 0.4197 | -805.0 | -619.8 | |
| 21.95 | -10.00 | 11.85 | -10.00 | 13.79 | 57.99 | 22.67 | 289.23 | 0.3982 | -1254.0 | 999999 | |
| 8.28 | -10.00 | 4.47 | -10.00 | 14.10 | 57.99 | 22.67 | 289.98 | 0.3995 | -1121.9 | 999999 | |
| 2.88 | -10.00 | 1.56 | -10.00 | 14.28 | 58.01 | 22.69 | 290.41 | 0.4006 | -955.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.20 | 58.05 | 22.73 | 292.57 | 0.4054 | -908.0 | -759.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 17.77 | 57.89 | 22.57 | 298.56 | 0.4178 | -720.0 | -569.2 | |
| 0.63 | -10.00 | 0.34 | -10.00 | 13.46 | 57.18 | 21.86 | 288.94 | 0.3845 | -948.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 17.46 | 57.23 | 21.91 | 298.48 | 0.4066 | -784.0 | -712.5 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 16.87 | 57.15 | 21.83 | 297.22 | 0.4019 | -770.0 | -607.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 17.53 | 56.89 | 21.57 | 298.98 | 0.4025 | -786.0 | -681.0 | |
| 2.97 | 12.06 | 1.58 | 6.44 | 13.53 | 56.35 | 21.03 | 289.68 | 0.3722 | 600.6 | -99.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 13.19 | 56.25 | 20.93 | 288.88 | 0.3692 | 768.0 | 731.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 13.84 | 56.25 | 20.93 | 290.56 | 0.3720 | 447.0 | 381.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 13.26 | 56.09 | 20.77 | 289.18 | 0.3671 | 860.0 | 809.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 14.02 | 53.15 | 17.83 | 293.83 | 0.3261 | 752.0 | 573.9 | |
| 0.00 | 4.32 | 0.00 | 2.26 | 14.53 | 52.63 | 17.31 | 295.87 | 0.3215 | 709.0 | 682.4 | |
| 1.35 | 1.62 | 0.71 | 0.86 | 17.97 | 52.82 | 17.50 | 304.83 | 0.3499 | -3.7 | -2.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 14.54 | 52.34 | 17.02 | 296.25 | 0.3172 | 964.0 | 805.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 15.34 | 52.30 | 16.98 | 298.58 | 0.3222 | 691.0 | 534.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 14.70 | 52.05 | 16.73 | 297.07 | 0.3141 | 844.0 | 707.9 | |
| 0.00 | 3.60 | 0.00 | 1.88 | 15.42 | 51.72 | 16.40 | 299.59 | 0.3144 | 652.0 | 667.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 14.66 | 51.40 | 16.08 | 297.81 | 0.3042 | 825.0 | 678.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 16.18 | 51.09 | 15.77 | 302.65 | 0.3114 | 835.0 | 710.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 17.58 | 50.72 | 15.40 | 307.05 | 0.3186 | 819.0 | 628.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 16.72 | 50.61 | 15.29 | 304.91 | 0.3094 | 804.0 | 584.1 | |
| 0.00 | 6.39 | 0.00 | 3.33 | 16.97 | 50.40 | 15.08 | 305.95 | 0.3088 | 910.0 | 856.7 | |
| 0.00 | 2.61 | 0.00 | 1.36 | 17.26 | 50.17 | 14.85 | 307.13 | 0.3083 | 792.0 | 648.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 12.95 | 49.28 | 13.96 | 295.21 | 0.2609 | 851.0 | 627.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 17.82 | 48.83 | 13.51 | 311.13 | 0.2967 | 912.0 | 762.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 14.45 | 45.68 | 10.36 | 307.79 | 0.2214 | 882.0 | 680.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
