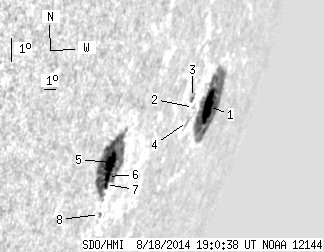

SDO HMI 2014-08-18 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.35 | 213.60 | 67.82 | 398.23 | -17.66 | 106.61 | 71.29 | 249.43 | 0.9629 | -59.2 | -76.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.16 | 104.01 | 43.27 | 237.68 | -17.29 | 109.79 | 74.47 | 250.52 | 0.9768 | 182.6 | 4.8 | |
| 0.00 | 1.26 | 0.00 | 2.50 | -17.10 | 107.88 | 72.56 | 250.34 | 0.9694 | 549.0 | 438.5 | |
| 0.00 | 3.42 | 0.00 | 6.58 | -16.72 | 107.40 | 72.08 | 250.62 | 0.9672 | 466.0 | 399.5 | |
| 0.00 | 3.42 | 0.00 | 6.73 | -17.53 | 107.66 | 72.34 | 249.86 | 0.9690 | 428.0 | 445.9 | |
| 11.79 | 99.69 | 16.77 | 142.06 | -18.13 | 101.27 | 65.95 | 247.76 | 0.9391 | -596.6 | -275.5 | |
| 3.69 | -5.00 | 5.30 | -5.00 | -18.59 | 101.30 | 65.98 | 247.29 | 0.9400 | -480.1 | 999999 | |
| 1.71 | -5.00 | 2.48 | -5.00 | -18.86 | 101.35 | 66.03 | 247.03 | 0.9406 | -274.9 | 999999 | |
| 0.00 | 1.80 | 0.00 | 2.68 | -19.89 | 101.70 | 66.38 | 246.06 | 0.9440 | -365.0 | -208.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
