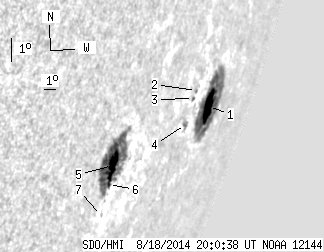

SDO HMI 2014-08-18 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.72 | 209.64 | 69.65 | 403.15 | -17.67 | 106.56 | 71.79 | 249.53 | 0.9650 | -67.7 | -78.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.25 | 101.31 | 45.34 | 241.09 | -17.32 | 109.76 | 74.99 | 250.59 | 0.9786 | 168.1 | 15.0 | |
| 0.00 | 1.26 | 0.00 | 2.52 | -16.54 | 107.53 | 72.76 | 250.94 | 0.9698 | 353.0 | 339.2 | |
| 0.45 | 1.71 | 0.90 | 3.41 | -16.79 | 107.45 | 72.68 | 250.67 | 0.9697 | 399.6 | 379.9 | |
| 0.00 | 4.68 | 0.00 | 9.38 | -17.63 | 107.42 | 72.66 | 249.82 | 0.9703 | 390.0 | 305.5 | |
| 15.75 | 100.41 | 23.01 | 146.34 | -18.25 | 101.21 | 66.44 | 247.76 | 0.9420 | -558.9 | -275.0 | |
| 0.27 | -5.00 | 0.40 | -5.00 | -18.89 | 101.39 | 66.62 | 247.15 | 0.9439 | -387.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.41 | -19.95 | 101.69 | 66.92 | 246.14 | 0.9470 | -308.0 | -296.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
