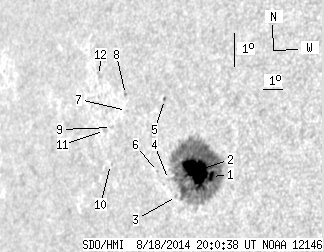

SDO HMI 2014-08-18 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.40 | 257.78 | 31.60 | 202.89 | 8.47 | 343.41 | -51.36 | 84.59 | 0.7782 | -687.6 | -239.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.05 | 246.35 | 3.12 | 193.09 | 8.32 | 344.28 | -50.49 | 84.83 | 0.7687 | -1043.4 | -277.9 | |
| 36.35 | -1.00 | 28.48 | -1.00 | 8.43 | 343.53 | -51.24 | 84.65 | 0.7770 | -1046.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.93 | 7.56 | 342.69 | -52.08 | 85.72 | 0.7864 | 353.0 | 385.1 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 8.04 | 342.20 | -52.57 | 85.09 | 0.7914 | 180.0 | 133.7 | |
| 0.00 | 1.17 | 0.00 | 0.96 | 10.42 | 341.48 | -53.28 | 82.06 | 0.7982 | 258.0 | 270.8 | |
| 0.00 | 0.72 | 0.00 | 0.59 | 8.23 | 341.60 | -53.16 | 84.82 | 0.7976 | 658.0 | 561.8 | |
| 0.00 | 0.54 | 0.00 | 0.46 | 9.90 | 339.60 | -55.17 | 82.66 | 0.8175 | 623.0 | 557.7 | |
| 0.00 | 0.81 | 0.00 | 0.70 | 10.38 | 339.42 | -55.35 | 82.08 | 0.8191 | 654.0 | 573.3 | |
| 0.00 | 1.53 | 0.00 | 1.33 | 9.32 | 338.92 | -55.85 | 83.35 | 0.8243 | 530.0 | 455.3 | |
| 0.00 | 0.54 | 0.00 | 0.47 | 8.20 | 339.12 | -55.65 | 84.72 | 0.8228 | 348.0 | 361.8 | |
| 0.00 | 2.25 | 0.00 | 1.97 | 9.19 | 338.56 | -56.20 | 83.49 | 0.8278 | 428.0 | 347.7 | |
| 0.00 | 2.43 | 0.00 | 2.17 | 10.81 | 337.85 | -56.92 | 81.52 | 0.8342 | 422.0 | 320.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
