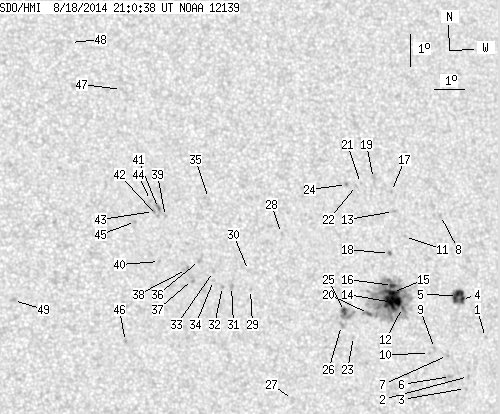

SDO HMI 2014-08-18 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.29 | 233.69 | 23.65 | 126.53 | 14.24 | 57.10 | 22.89 | 290.54 | 0.4046 | -361.5 | -273.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.65 | 12.58 | 61.08 | 26.87 | 284.37 | 0.4573 | -579.0 | -437.4 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 11.43 | 60.37 | 26.16 | 282.07 | 0.4437 | -774.0 | -629.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 11.07 | 60.23 | 26.02 | 281.30 | 0.4408 | -639.0 | -502.5 | |
| 2.97 | 15.84 | 1.65 | 8.77 | 13.78 | 60.39 | 26.18 | 287.27 | 0.4505 | -900.8 | -683.7 | |
| 8.73 | -4.00 | 4.83 | -4.00 | 13.91 | 60.27 | 26.05 | 287.61 | 0.4491 | -1053.9 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 11.46 | 59.75 | 25.54 | 282.34 | 0.4344 | -919.0 | -818.7 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 12.10 | 59.72 | 25.50 | 283.82 | 0.4353 | -799.0 | -674.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 16.38 | 60.00 | 25.79 | 293.06 | 0.4555 | -653.0 | -534.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 12.34 | 59.29 | 25.08 | 284.52 | 0.4296 | -830.0 | -638.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.19 | 59.11 | 24.89 | 284.27 | 0.4263 | -821.0 | -651.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 15.80 | 58.67 | 24.45 | 292.70 | 0.4335 | -543.0 | -492.1 | |
| 0.72 | 145.49 | 0.39 | 79.12 | 13.64 | 58.34 | 24.12 | 287.99 | 0.4194 | -766.5 | -475.4 | |
| 0.00 | 2.34 | 0.00 | 1.29 | 16.59 | 58.39 | 24.18 | 294.62 | 0.4335 | -807.0 | -550.9 | |
| 18.27 | -12.00 | 9.94 | -12.00 | 13.81 | 58.01 | 23.80 | 288.57 | 0.4151 | -1271.1 | 999999 | |
| 7.11 | -12.00 | 3.87 | -12.00 | 14.11 | 58.05 | 23.83 | 289.26 | 0.4169 | -1064.1 | 999999 | |
| 2.34 | -12.00 | 1.27 | -12.00 | 14.33 | 58.07 | 23.86 | 289.74 | 0.4181 | -988.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 17.21 | 58.40 | 24.19 | 295.94 | 0.4371 | -718.0 | -643.4 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 15.31 | 58.09 | 23.87 | 291.98 | 0.4227 | -907.0 | -812.3 | |
| 0.00 | 4.05 | 0.00 | 2.22 | 17.63 | 57.84 | 23.63 | 297.32 | 0.4317 | -588.0 | -359.5 | |
| 0.90 | -12.00 | 0.49 | -12.00 | 13.51 | 57.16 | 22.95 | 288.36 | 0.4012 | -1032.6 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 17.50 | 57.37 | 23.16 | 297.43 | 0.4243 | -480.0 | -383.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 17.45 | 57.22 | 23.01 | 297.44 | 0.4219 | -861.0 | -695.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 12.83 | 56.59 | 22.38 | 287.02 | 0.3899 | 528.0 | 373.1 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 17.49 | 56.88 | 22.67 | 297.84 | 0.4175 | -829.0 | -695.3 | |
| 2.25 | 10.89 | 1.21 | 5.85 | 13.61 | 56.36 | 22.15 | 289.10 | 0.3894 | 740.0 | 18.3 | |
| 0.00 | 2.43 | 0.00 | 1.30 | 13.19 | 56.22 | 22.01 | 288.13 | 0.3856 | 617.0 | 719.4 | |
| 0.00 | 2.43 | 0.00 | 1.28 | 11.00 | 54.41 | 20.19 | 283.34 | 0.3497 | 5.0 | 10.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 16.08 | 54.50 | 20.29 | 296.79 | 0.3748 | -672.0 | -591.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 14.41 | 53.30 | 19.08 | 293.64 | 0.3472 | 658.0 | 439.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 14.99 | 53.28 | 19.07 | 295.22 | 0.3504 | 1.0 | -7.7 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 14.53 | 52.68 | 18.47 | 294.57 | 0.3386 | 725.0 | 660.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 14.54 | 52.38 | 18.17 | 294.91 | 0.3343 | 843.0 | 763.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.01 | 52.13 | 17.91 | 296.50 | 0.3334 | 774.0 | 605.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 14.73 | 52.10 | 17.89 | 295.76 | 0.3313 | 793.0 | 609.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 17.25 | 52.17 | 17.96 | 302.39 | 0.3503 | -6.0 | 2.3 | |
| 0.00 | 2.16 | 0.00 | 1.13 | 15.36 | 51.70 | 17.48 | 297.99 | 0.3295 | 859.0 | 686.8 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 14.79 | 51.42 | 17.20 | 296.71 | 0.3215 | 628.0 | 763.5 | |
| 0.00 | 3.60 | 0.00 | 1.88 | 15.10 | 51.25 | 17.03 | 297.82 | 0.3211 | 746.0 | 629.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.75 | 50.70 | 16.48 | 303.12 | 0.3259 | 682.0 | 451.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 15.37 | 50.38 | 16.17 | 299.75 | 0.3106 | 738.0 | 542.3 | |
| 0.00 | 3.06 | 0.00 | 1.60 | 17.00 | 50.49 | 16.28 | 304.11 | 0.3251 | 852.0 | 707.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.79 | 50.44 | 16.22 | 303.62 | 0.3226 | 775.0 | 659.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 16.92 | 50.32 | 16.10 | 304.14 | 0.3220 | 979.0 | 886.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.26 | 50.25 | 16.03 | 305.15 | 0.3240 | 922.0 | 725.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.63 | 49.70 | 15.49 | 304.32 | 0.3111 | 779.0 | 676.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 12.97 | 49.10 | 14.89 | 293.93 | 0.2752 | 854.0 | 694.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 20.73 | 49.62 | 15.41 | 314.54 | 0.3502 | 23.0 | 9.6 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 22.25 | 48.06 | 13.85 | 320.57 | 0.3504 | -7.0 | -1.7 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 14.32 | 45.59 | 11.38 | 304.81 | 0.2339 | 852.0 | 729.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
