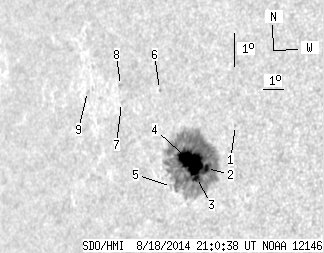

SDO HMI 2014-08-18 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.46 | 266.42 | 33.62 | 206.73 | 8.40 | 343.52 | -50.69 | 84.72 | 0.7709 | -803.4 | -252.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.54 | 9.72 | 345.38 | -48.84 | 83.03 | 0.7498 | 313.0 | 250.1 | |
| 3.60 | 258.77 | 2.75 | 200.44 | 8.31 | 344.26 | -49.95 | 84.87 | 0.7628 | -1041.6 | -276.2 | |
| 4.14 | -2.00 | 3.19 | -2.00 | 8.00 | 343.83 | -50.38 | 85.26 | 0.7677 | -902.8 | 999999 | |
| 35.72 | -2.00 | 27.68 | -2.00 | 8.42 | 343.52 | -50.70 | 84.69 | 0.7710 | -1045.6 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.85 | 7.61 | 342.68 | -51.54 | 85.69 | 0.7806 | 399.0 | 292.7 | |
| 0.00 | 0.45 | 0.00 | 0.36 | 10.48 | 341.49 | -52.72 | 82.00 | 0.7924 | 523.0 | 435.4 | |
| 0.00 | 0.90 | 0.00 | 0.76 | 9.90 | 339.64 | -54.57 | 82.68 | 0.8115 | 682.0 | 582.9 | |
| 0.00 | 2.07 | 0.00 | 1.75 | 10.41 | 339.46 | -54.75 | 82.06 | 0.8132 | 605.0 | 474.9 | |
| 0.00 | 1.17 | 0.00 | 1.03 | 10.06 | 337.74 | -56.47 | 82.44 | 0.8302 | 333.0 | 335.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
