SDO HMI 2014-08-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.40 | 311.27 | 29.76 | 158.05 | 16.24 | 25.80 | -7.86 | 36.08 | 0.2154 | -41.0 | -159.0 | |
|
previous
or next observation for the same group /

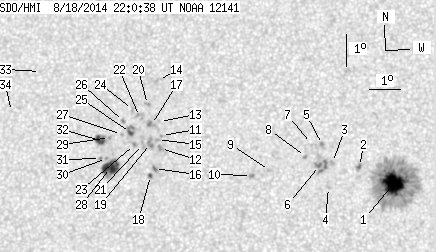

back to the solar disc SDO HMI 2014-08-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.94 | 192.83 | 16.09 | 97.11 | 15.85 | 28.52 | -5.14 | 28.67 | 0.1804 | -1449.4 | -417.3 | |
| 0.90 | 3.33 | 0.45 | 1.68 | 16.36 | 27.43 | -6.23 | 32.01 | 0.1974 | -1087.4 | -802.7 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 16.48 | 26.57 | -7.09 | 35.07 | 0.2071 | -979.0 | -821.6 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 15.71 | 26.47 | -7.20 | 37.79 | 0.1977 | -862.0 | -644.2 | |
| 0.00 | 3.06 | 0.00 | 1.55 | 17.03 | 26.23 | -7.43 | 34.76 | 0.2180 | -877.0 | -759.3 | |
| 0.81 | 13.86 | 0.41 | 7.02 | 16.38 | 26.15 | -7.51 | 36.86 | 0.2099 | -1024.6 | -796.1 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 17.05 | 25.87 | -7.79 | 35.92 | 0.2218 | -390.0 | -501.6 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.65 | 25.70 | -7.96 | 37.67 | 0.2182 | -1006.0 | -806.9 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.20 | 24.57 | -9.09 | 42.69 | 0.2249 | -879.0 | -691.3 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 16.04 | 24.00 | -9.66 | 44.90 | 0.2296 | -848.0 | -784.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.21 | 21.03 | -12.63 | 48.77 | 0.2791 | 909.0 | 751.7 | |
| 0.00 | 3.06 | 0.00 | 1.58 | 16.80 | 21.02 | -12.64 | 49.92 | 0.2750 | 1121.0 | 940.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 17.64 | 20.93 | -12.73 | 47.78 | 0.2848 | 660.0 | 528.5 | |
| 0.00 | 3.60 | 0.00 | 1.87 | 18.90 | 20.80 | -12.86 | 44.76 | 0.3003 | 472.0 | 587.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 17.08 | 20.90 | -12.76 | 49.38 | 0.2793 | 962.0 | 736.4 | |
| 0.72 | 2.25 | 0.37 | 1.16 | 16.19 | 20.87 | -12.79 | 52.08 | 0.2708 | 1267.0 | 1087.1 | |
| 0.00 | 5.04 | 0.00 | 2.60 | 17.54 | 20.68 | -12.98 | 48.58 | 0.2869 | 1015.0 | 917.8 | |
| 0.99 | 2.07 | 0.51 | 1.06 | 15.97 | 20.75 | -12.91 | 52.98 | 0.2702 | 981.5 | 805.6 | |
| 0.00 | 5.85 | 0.00 | 3.02 | 16.95 | 20.69 | -12.98 | 50.20 | 0.2808 | 1122.0 | 948.1 | |
| 0.00 | 2.34 | 0.00 | 1.21 | 18.15 | 20.50 | -13.16 | 47.31 | 0.2956 | 1018.0 | 804.1 | |
| 0.00 | 2.97 | 0.00 | 1.53 | 16.91 | 20.43 | -13.23 | 50.84 | 0.2837 | 788.0 | 730.5 | |
| 0.00 | 5.76 | 0.00 | 2.98 | 17.77 | 20.27 | -13.39 | 48.78 | 0.2945 | 558.0 | 734.4 | |
| 0.00 | 2.34 | 0.00 | 1.21 | 16.91 | 20.17 | -13.49 | 51.37 | 0.2870 | 1019.0 | 812.0 | |
| 0.00 | 2.34 | 0.00 | 1.21 | 17.98 | 20.02 | -13.64 | 48.72 | 0.2998 | 828.0 | 614.1 | |
| 1.80 | 6.66 | 0.93 | 3.45 | 17.27 | 20.01 | -13.65 | 50.65 | 0.2927 | 1061.0 | 793.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 17.61 | 19.76 | -13.91 | 50.24 | 0.2993 | 868.0 | 611.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.20 | 19.72 | -13.94 | 51.40 | 0.2958 | 884.0 | 732.8 | |
| 16.02 | 22.86 | 8.29 | 11.83 | 16.18 | 19.44 | -14.22 | 54.84 | 0.2899 | 1104.3 | 629.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 17.10 | 19.34 | -14.32 | 52.40 | 0.2998 | 882.0 | 718.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.45 | 19.29 | -14.37 | 54.31 | 0.2944 | 829.0 | 666.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.45 | 19.09 | -14.57 | 54.67 | 0.2970 | 838.0 | 630.2 | |
| 5.22 | 9.27 | 2.71 | 4.82 | 17.00 | 19.02 | -14.64 | 53.25 | 0.3031 | 963.5 | 766.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 19.07 | 16.87 | -16.79 | 51.50 | 0.3503 | 4.0 | -6.5 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 17.80 | 16.03 | -17.63 | 55.80 | 0.3502 | 10.0 | 3.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
