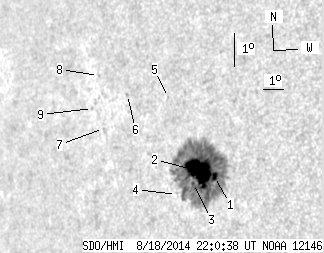

SDO HMI 2014-08-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.65 | 273.09 | 32.63 | 209.40 | 8.44 | 343.49 | -50.17 | 84.70 | 0.7651 | -819.9 | -276.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.51 | 267.24 | 2.65 | 204.49 | 8.33 | 344.27 | -49.39 | 84.87 | 0.7564 | -1119.6 | -295.4 | |
| 38.15 | -1.00 | 29.22 | -1.00 | 8.42 | 343.54 | -50.12 | 84.72 | 0.7646 | -1055.1 | 999999 | |
| 0.99 | -1.00 | 0.76 | -1.00 | 8.03 | 343.32 | -50.34 | 85.22 | 0.7672 | -284.1 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 7.63 | 342.56 | -51.10 | 85.70 | 0.7758 | 368.0 | 297.9 | |
| 0.00 | 0.63 | 0.00 | 0.50 | 10.51 | 341.59 | -52.07 | 81.97 | 0.7855 | 220.0 | 299.6 | |
| 0.00 | 1.35 | 0.00 | 1.13 | 10.40 | 339.49 | -54.17 | 82.08 | 0.8073 | 492.0 | 515.1 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 9.26 | 338.48 | -55.18 | 83.45 | 0.8177 | 383.0 | 353.7 | |
| 0.00 | 0.90 | 0.00 | 0.78 | 10.83 | 337.81 | -55.85 | 81.53 | 0.8240 | 577.0 | 458.7 | |
| 0.00 | 1.17 | 0.00 | 1.02 | 9.81 | 337.75 | -55.91 | 82.76 | 0.8248 | 298.0 | 227.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
