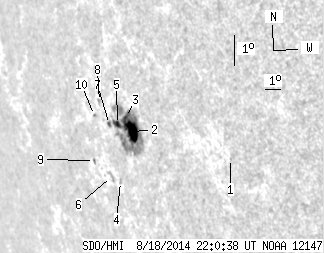

SDO HMI 2014-08-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.59 | 113.56 | 25.75 | 130.29 | -9.61 | 331.18 | -62.48 | 104.11 | 0.9033 | 505.7 | 146.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.60 | -9.78 | 337.47 | -56.19 | 105.93 | 0.8535 | 499.0 | 483.0 | |
| 16.20 | 101.59 | 18.27 | 115.77 | -9.54 | 331.62 | -62.04 | 104.14 | 0.9001 | 729.3 | 181.6 | |
| 1.17 | -2.00 | 1.33 | -2.00 | -9.14 | 331.28 | -62.38 | 103.62 | 0.9019 | 611.2 | 999999 | |
| 0.00 | 1.98 | 0.00 | 2.38 | -11.27 | 330.17 | -63.49 | 105.66 | 0.9131 | 328.0 | 263.5 | |
| 3.87 | -2.00 | 4.51 | -2.00 | -9.42 | 330.65 | -63.02 | 103.79 | 0.9069 | 373.6 | 999999 | |
| 0.00 | 4.68 | 0.00 | 5.75 | -11.18 | 329.57 | -64.09 | 105.41 | 0.9170 | -484.0 | -353.2 | |
| 0.99 | -2.00 | 1.18 | -2.00 | -9.49 | 330.07 | -63.59 | 103.72 | 0.9111 | 111.7 | 999999 | |
| 0.00 | 1.89 | 0.00 | 2.28 | -8.82 | 329.59 | -64.07 | 102.90 | 0.9134 | 127.0 | 159.6 | |
| 0.36 | 1.62 | 0.46 | 2.07 | -10.79 | 328.49 | -65.17 | 104.76 | 0.9235 | -387.0 | -346.7 | |
| 0.00 | 1.17 | 0.00 | 1.44 | -9.31 | 329.06 | -64.60 | 103.31 | 0.9177 | 197.0 | 159.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
