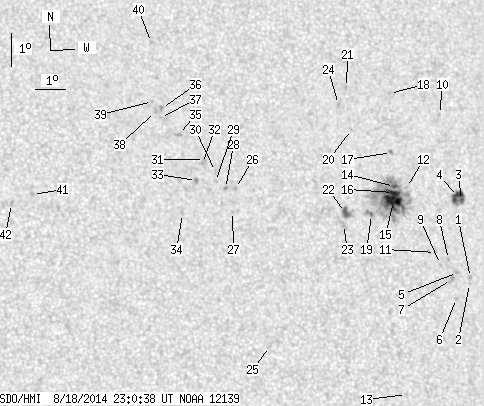

SDO HMI 2014-08-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.51 | 204.01 | 21.77 | 111.38 | 13.99 | 57.18 | 24.07 | 289.16 | 0.4206 | -332.8 | -306.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | 11.40 | 60.44 | 27.34 | 281.66 | 0.4615 | -826.0 | -697.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 11.22 | 60.39 | 27.28 | 281.29 | 0.4604 | -546.0 | -466.4 | |
| 1.71 | 14.58 | 0.96 | 8.15 | 13.76 | 60.40 | 27.30 | 286.71 | 0.4670 | -888.4 | -699.5 | |
| 7.83 | -3.00 | 4.38 | -3.00 | 13.89 | 60.28 | 27.17 | 287.03 | 0.4655 | -992.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 11.58 | 60.01 | 26.90 | 282.17 | 0.4553 | -752.0 | -646.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.79 | 59.89 | 26.79 | 280.47 | 0.4521 | -739.0 | -612.8 | |
| 0.00 | 3.15 | 0.00 | 1.75 | 11.38 | 59.78 | 26.67 | 281.79 | 0.4514 | -851.0 | -770.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 11.99 | 59.74 | 26.63 | 283.15 | 0.4522 | -768.0 | -685.8 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 11.85 | 59.45 | 26.34 | 282.95 | 0.4474 | -696.0 | -469.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 16.43 | 60.00 | 26.89 | 292.45 | 0.4713 | -711.0 | -484.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 12.23 | 59.32 | 26.21 | 283.82 | 0.4463 | -761.0 | -574.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 14.26 | 58.54 | 25.44 | 288.66 | 0.4412 | -491.0 | -340.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 7.97 | 57.95 | 24.85 | 274.26 | 0.4190 | -670.0 | -514.2 | |
| 1.98 | 123.82 | 1.09 | 67.91 | 14.31 | 58.14 | 25.03 | 289.00 | 0.4354 | -934.0 | -532.6 | |
| 17.73 | -14.00 | 9.73 | -14.00 | 13.85 | 58.05 | 24.94 | 288.02 | 0.4323 | -1213.9 | 999999 | |
| 6.30 | -14.00 | 3.46 | -14.00 | 14.13 | 58.08 | 24.97 | 288.62 | 0.4338 | -1018.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 15.35 | 58.16 | 25.05 | 291.29 | 0.4401 | -832.0 | -713.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 17.16 | 58.34 | 25.24 | 295.05 | 0.4515 | -774.0 | -602.7 | |
| 0.45 | -14.00 | 0.25 | -14.00 | 13.49 | 57.25 | 24.14 | 287.62 | 0.4190 | -934.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 16.12 | 56.88 | 23.77 | 293.87 | 0.4252 | -624.0 | -484.9 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 17.42 | 56.88 | 23.77 | 296.72 | 0.4323 | -772.0 | -588.1 | |
| 3.51 | 10.26 | 1.90 | 5.56 | 13.60 | 56.37 | 23.27 | 288.36 | 0.4062 | 456.5 | 44.4 | |
| 0.00 | 3.69 | 0.00 | 2.00 | 13.23 | 56.27 | 23.16 | 287.55 | 0.4033 | 660.0 | 665.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 16.91 | 56.53 | 23.42 | 295.89 | 0.4245 | -825.0 | -679.9 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 9.64 | 53.50 | 20.40 | 279.34 | 0.3497 | -19.0 | -1.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 14.49 | 52.76 | 19.66 | 293.29 | 0.3561 | 730.0 | 642.9 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 13.79 | 52.60 | 19.49 | 291.55 | 0.3499 | 771.0 | 526.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 14.50 | 52.43 | 19.33 | 293.63 | 0.3512 | 865.0 | 689.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 14.73 | 52.12 | 19.01 | 294.54 | 0.3479 | 799.0 | 621.3 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 15.03 | 52.15 | 19.04 | 295.34 | 0.3501 | 691.0 | 527.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 15.41 | 51.82 | 18.71 | 296.70 | 0.3477 | 650.0 | 539.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 15.30 | 51.74 | 18.64 | 296.46 | 0.3458 | 816.0 | 615.3 | |
| 0.00 | 2.52 | 0.00 | 1.33 | 14.78 | 51.50 | 18.39 | 295.34 | 0.3390 | 926.0 | 763.2 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 13.79 | 50.95 | 17.84 | 293.11 | 0.3250 | 720.0 | 581.9 | |
| 0.00 | 2.97 | 0.00 | 1.56 | 16.21 | 51.03 | 17.93 | 299.73 | 0.3418 | 873.0 | 661.1 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 17.03 | 50.55 | 17.44 | 302.50 | 0.3412 | 833.0 | 671.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 16.76 | 50.49 | 17.38 | 301.87 | 0.3382 | 806.0 | 678.7 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 16.95 | 50.34 | 17.23 | 302.57 | 0.3377 | 1029.0 | 785.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.26 | 50.27 | 17.16 | 303.47 | 0.3393 | 868.0 | 664.8 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 19.08 | 50.43 | 17.32 | 307.71 | 0.3571 | 712.0 | 510.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 14.53 | 46.13 | 13.03 | 302.15 | 0.2588 | 828.0 | 631.9 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 14.27 | 45.44 | 12.34 | 302.59 | 0.2468 | 707.0 | 448.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
