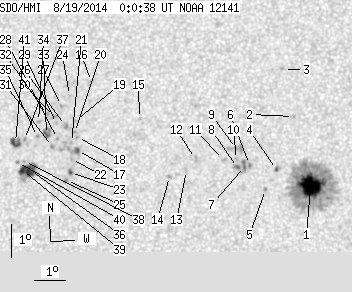

SDO HMI 2014-08-19 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.16 | 314.01 | 28.51 | 159.03 | 16.22 | 26.03 | -6.52 | 31.12 | 0.2024 | -70.7 | -178.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.50 | 197.46 | 15.84 | 99.29 | 15.84 | 28.52 | -4.03 | 23.32 | 0.1718 | -1424.6 | -399.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 17.99 | 27.93 | -4.62 | 21.55 | 0.2097 | -818.0 | -683.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 19.45 | 27.57 | -4.98 | 20.51 | 0.2349 | -674.0 | -540.1 | |
| 0.72 | 2.34 | 0.36 | 1.18 | 16.36 | 27.43 | -5.12 | 27.29 | 0.1877 | -998.1 | -596.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 15.74 | 27.10 | -5.46 | 30.48 | 0.1813 | -953.0 | -788.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 16.50 | 26.57 | -5.98 | 30.64 | 0.1970 | -1011.0 | -838.4 | |
| 0.54 | 9.72 | 0.27 | 4.91 | 16.44 | 26.42 | -6.14 | 31.46 | 0.1975 | -1220.2 | -860.0 | |
| 0.81 | -7.00 | 0.41 | -7.00 | 16.40 | 26.19 | -6.36 | 32.46 | 0.1990 | -1075.2 | 999999 | |
| 0.00 | 8.19 | 0.00 | 4.15 | 16.99 | 26.14 | -6.41 | 31.08 | 0.2079 | -818.0 | -696.9 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.65 | 26.15 | -6.40 | 31.94 | 0.2029 | -796.0 | -645.7 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 16.64 | 25.74 | -6.82 | 33.56 | 0.2066 | -885.0 | -726.4 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 16.66 | 24.85 | -7.71 | 36.78 | 0.2157 | -866.0 | -704.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.29 | 24.57 | -7.98 | 38.83 | 0.2136 | -764.0 | -560.0 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 16.10 | 24.04 | -8.52 | 41.22 | 0.2170 | -897.0 | -714.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.87 | 22.99 | -9.57 | 39.31 | 0.2508 | -583.0 | -489.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.98 | 21.36 | -11.19 | 40.78 | 0.2823 | 760.0 | 679.8 | |
| 1.62 | 12.42 | 0.83 | 6.38 | 16.84 | 21.04 | -11.51 | 47.30 | 0.2611 | 1078.7 | 848.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 17.24 | 21.02 | -11.54 | 46.20 | 0.2658 | 893.0 | 768.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 17.76 | 20.92 | -11.64 | 44.98 | 0.2729 | 827.0 | 594.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.39 | 20.91 | -11.64 | 46.03 | 0.2688 | 811.0 | 710.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.08 | 20.84 | -11.72 | 47.09 | 0.2663 | 979.0 | 794.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.56 | 20.87 | -11.69 | 48.55 | 0.2603 | 902.0 | 761.2 | |
| 0.81 | 2.34 | 0.41 | 1.20 | 16.16 | 20.86 | -11.70 | 49.79 | 0.2561 | 1225.1 | 1064.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.53 | 20.67 | -11.88 | 43.54 | 0.2846 | 780.0 | 607.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.91 | 20.74 | -11.81 | 50.83 | 0.2551 | 1033.0 | 918.2 | |
| 0.00 | 3.24 | 0.00 | 1.67 | 17.60 | 20.61 | -11.95 | 46.16 | 0.2748 | 1022.0 | 867.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 18.22 | 20.44 | -12.12 | 44.91 | 0.2838 | 921.0 | 748.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.20 | 20.37 | -12.18 | 47.82 | 0.2732 | 981.0 | 777.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.66 | 20.31 | -12.25 | 46.68 | 0.2790 | 890.0 | 729.7 | |
| 0.00 | 3.33 | 0.00 | 1.72 | 17.87 | 20.23 | -12.33 | 46.28 | 0.2824 | 855.0 | 723.1 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 16.95 | 20.23 | -12.33 | 48.86 | 0.2724 | 982.0 | 842.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.93 | 20.00 | -12.56 | 46.64 | 0.2858 | 892.0 | 748.5 | |
| 1.53 | 6.57 | 0.79 | 3.39 | 17.31 | 20.01 | -12.55 | 48.30 | 0.2790 | 1075.9 | 824.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 17.71 | 19.72 | -12.84 | 47.84 | 0.2868 | 765.0 | 619.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 17.24 | 19.72 | -12.84 | 49.11 | 0.2819 | 864.0 | 682.3 | |
| 9.00 | 22.14 | 4.63 | 11.40 | 16.19 | 19.56 | -12.99 | 52.49 | 0.2734 | 1228.5 | 633.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 17.14 | 19.30 | -13.25 | 50.26 | 0.2862 | 819.0 | 640.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 16.46 | 19.35 | -13.21 | 52.11 | 0.2788 | 879.0 | 698.2 | |
| 4.50 | -36.00 | 2.32 | -36.00 | 16.18 | 19.30 | -13.25 | 53.03 | 0.2768 | 946.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.43 | 19.13 | -13.43 | 52.66 | 0.2815 | 744.0 | 634.7 | |
| 5.13 | 8.73 | 2.65 | 4.52 | 17.04 | 19.02 | -13.54 | 51.11 | 0.2889 | 984.0 | 752.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
