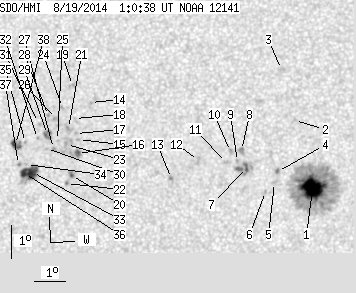

SDO HMI 2014-08-19 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.45 | 323.84 | 27.61 | 163.84 | 16.27 | 26.02 | -5.98 | 28.64 | 0.1986 | -34.1 | -169.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.50 | 199.28 | 15.83 | 100.14 | 15.85 | 28.54 | -3.46 | 20.31 | 0.1682 | -1412.6 | -396.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 17.94 | 27.93 | -4.08 | 19.30 | 0.2055 | -807.0 | -700.1 | |
| 0.00 | 2.97 | 0.00 | 1.51 | 19.52 | 27.48 | -4.53 | 18.69 | 0.2334 | -765.0 | -570.3 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 16.36 | 27.42 | -4.58 | 24.77 | 0.1837 | -1242.0 | -864.3 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 16.02 | 27.34 | -4.67 | 26.02 | 0.1792 | -769.0 | -565.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 15.75 | 27.06 | -4.95 | 28.09 | 0.1771 | -857.0 | -703.6 | |
| 1.53 | 14.31 | 0.77 | 7.23 | 16.48 | 26.44 | -5.57 | 28.95 | 0.1931 | -1097.1 | -840.4 | |
| 0.00 | 4.05 | 0.00 | 2.05 | 17.00 | 26.26 | -5.74 | 28.37 | 0.2023 | -855.0 | -785.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 16.66 | 26.15 | -5.86 | 29.71 | 0.1982 | -809.0 | -670.4 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 16.96 | 25.91 | -6.09 | 29.88 | 0.2047 | -803.0 | -660.8 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 16.62 | 25.80 | -6.21 | 31.24 | 0.2008 | -912.0 | -597.1 | |
| 0.00 | 3.24 | 0.00 | 1.64 | 16.68 | 24.90 | -7.10 | 34.56 | 0.2098 | -814.0 | -698.9 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 16.11 | 24.06 | -7.94 | 39.26 | 0.2107 | -1048.0 | -763.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 18.41 | 21.34 | -10.67 | 40.90 | 0.2694 | 815.0 | 662.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.26 | 21.02 | -10.99 | 44.81 | 0.2594 | 997.0 | 813.6 | |
| 1.80 | 6.57 | 0.92 | 3.37 | 16.83 | 21.01 | -10.99 | 46.08 | 0.2545 | 1102.3 | 876.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.44 | 20.91 | -11.09 | 44.57 | 0.2627 | 936.0 | 765.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 17.90 | 20.85 | -11.15 | 43.46 | 0.2688 | 753.0 | 568.2 | |
| 0.00 | 3.06 | 0.00 | 1.58 | 18.92 | 20.72 | -11.29 | 41.16 | 0.2825 | 663.0 | 675.9 | |
| 0.81 | 2.34 | 0.41 | 1.20 | 16.14 | 20.86 | -11.15 | 48.53 | 0.2489 | 1250.2 | 1052.8 | |
| 0.00 | 5.67 | 0.00 | 2.91 | 17.59 | 20.68 | -11.33 | 44.74 | 0.2672 | 1104.0 | 797.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 15.90 | 20.71 | -11.29 | 49.68 | 0.2482 | 959.0 | 841.0 | |
| 0.00 | 9.36 | 0.00 | 4.80 | 17.10 | 20.64 | -11.36 | 46.21 | 0.2620 | 988.0 | 777.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 18.23 | 20.44 | -11.57 | 43.58 | 0.2775 | 908.0 | 755.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.21 | 20.34 | -11.66 | 46.59 | 0.2670 | 1019.0 | 812.6 | |
| 0.00 | 2.79 | 0.00 | 1.44 | 17.89 | 20.27 | -11.74 | 44.90 | 0.2755 | 868.0 | 748.2 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 16.96 | 20.23 | -11.78 | 47.58 | 0.2657 | 1012.0 | 868.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 17.98 | 20.00 | -12.01 | 45.29 | 0.2797 | 768.0 | 599.2 | |
| 0.00 | 6.66 | 0.00 | 3.43 | 17.39 | 20.01 | -12.00 | 46.87 | 0.2730 | 964.0 | 903.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.96 | 20.00 | -12.00 | 48.11 | 0.2684 | 881.0 | 695.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 17.75 | 19.69 | -12.32 | 46.59 | 0.2809 | 568.0 | 613.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.26 | 19.69 | -12.32 | 47.95 | 0.2755 | 775.0 | 592.3 | |
| 10.26 | 23.22 | 5.27 | 11.93 | 16.21 | 19.60 | -12.41 | 51.23 | 0.2658 | 1206.9 | 582.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.45 | 19.39 | -12.62 | 50.95 | 0.2710 | 829.0 | 651.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.13 | 19.31 | -12.70 | 49.15 | 0.2789 | 786.0 | 691.3 | |
| 4.23 | -33.00 | 2.18 | -33.00 | 16.17 | 19.34 | -12.67 | 51.89 | 0.2689 | 982.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.44 | 19.13 | -12.88 | 51.51 | 0.2743 | 772.0 | 638.5 | |
| 4.32 | 7.74 | 2.23 | 4.00 | 17.06 | 18.99 | -13.02 | 50.02 | 0.2823 | 990.1 | 826.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
