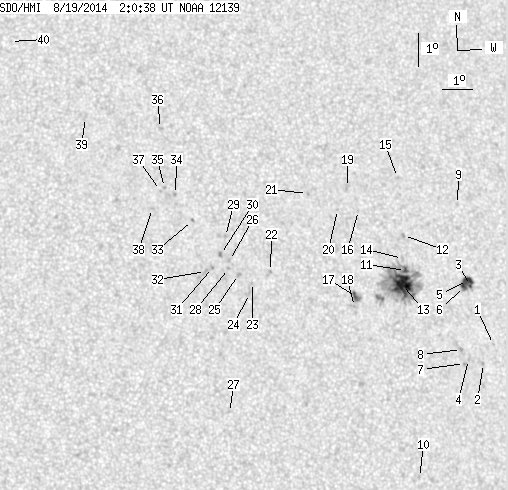

SDO HMI 2014-08-19 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.41 | 189.48 | 23.14 | 104.88 | 14.23 | 57.21 | 25.75 | 288.72 | 0.4467 | -335.9 | -315.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.51 | 11.93 | 61.00 | 29.55 | 282.17 | 0.4956 | -536.0 | -439.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 11.37 | 60.58 | 29.13 | 281.14 | 0.4883 | -684.0 | -593.0 | |
| 1.35 | 13.77 | 0.77 | 7.82 | 13.77 | 60.42 | 28.96 | 286.05 | 0.4914 | -860.7 | -612.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 11.52 | 60.07 | 28.61 | 281.57 | 0.4809 | -720.0 | -559.2 | |
| 5.40 | -3.00 | 3.07 | -3.00 | 13.93 | 60.33 | 28.88 | 286.40 | 0.4906 | -887.8 | 999999 | |
| 3.06 | -3.00 | 1.74 | -3.00 | 13.75 | 60.20 | 28.75 | 286.09 | 0.4882 | -1004.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 11.41 | 59.91 | 28.46 | 281.38 | 0.4784 | -829.0 | -736.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 11.84 | 59.86 | 28.40 | 282.29 | 0.4784 | -829.0 | -671.4 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 16.27 | 60.33 | 28.87 | 291.03 | 0.4986 | -616.0 | -496.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 8.04 | 58.04 | 26.59 | 274.34 | 0.4463 | -670.0 | -482.9 | |
| 1.89 | 120.45 | 1.05 | 66.97 | 14.35 | 58.20 | 26.74 | 288.19 | 0.4607 | -896.0 | -515.3 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 15.42 | 58.27 | 26.81 | 290.41 | 0.4659 | -862.0 | -696.6 | |
| 27.10 | -11.00 | 15.08 | -11.00 | 13.93 | 58.04 | 26.58 | 287.37 | 0.4569 | -1111.4 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 14.72 | 58.14 | 26.68 | 289.01 | 0.4612 | -88.0 | -87.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 17.21 | 58.33 | 26.87 | 294.04 | 0.4746 | -716.0 | -584.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.27 | 56.81 | 25.35 | 293.07 | 0.4486 | -712.0 | -528.1 | |
| 2.61 | 6.57 | 1.43 | 3.61 | 13.65 | 56.37 | 24.91 | 287.56 | 0.4311 | 465.8 | 51.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 13.35 | 56.30 | 24.84 | 286.90 | 0.4291 | 602.0 | 548.5 | |
| 0.00 | 3.42 | 0.00 | 1.89 | 17.00 | 56.53 | 25.07 | 294.80 | 0.4482 | -761.0 | -602.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 16.34 | 56.08 | 24.63 | 293.71 | 0.4386 | -635.0 | -538.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.88 | 55.12 | 23.66 | 295.61 | 0.4276 | -599.0 | -557.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 14.55 | 53.57 | 22.11 | 291.40 | 0.3930 | 612.0 | 513.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 14.24 | 52.93 | 21.47 | 291.11 | 0.3819 | 605.0 | 509.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 13.91 | 52.79 | 21.34 | 290.37 | 0.3784 | 646.0 | 501.9 | |
| 0.00 | 2.34 | 0.00 | 1.25 | 14.50 | 52.48 | 21.03 | 292.13 | 0.3766 | 729.0 | 592.0 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 14.94 | 52.23 | 20.77 | 293.45 | 0.3751 | 684.0 | 577.9 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 10.32 | 51.83 | 20.37 | 281.26 | 0.3507 | -7.0 | 2.3 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 14.70 | 52.17 | 20.71 | 292.89 | 0.3729 | 777.0 | 603.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 15.68 | 52.17 | 20.71 | 295.36 | 0.3784 | 612.0 | 543.1 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 15.14 | 51.94 | 20.49 | 294.20 | 0.3720 | 884.0 | 749.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 14.75 | 51.64 | 20.18 | 293.49 | 0.3653 | 864.0 | 769.9 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 14.64 | 51.39 | 19.94 | 293.41 | 0.3610 | 802.0 | 700.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 16.22 | 51.12 | 19.66 | 297.74 | 0.3665 | 697.0 | 567.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 17.04 | 50.63 | 19.18 | 300.32 | 0.3654 | 760.0 | 607.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 17.27 | 50.29 | 18.83 | 301.29 | 0.3623 | 722.0 | 591.3 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 19.10 | 50.36 | 18.90 | 305.53 | 0.3778 | 688.0 | 525.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 17.18 | 50.14 | 18.69 | 301.25 | 0.3596 | 722.0 | 571.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 16.64 | 49.82 | 18.36 | 300.28 | 0.3510 | 863.0 | 623.1 | |
| 0.00 | 2.97 | 0.00 | 1.57 | 19.53 | 47.88 | 16.42 | 310.11 | 0.3499 | -3.0 | 9.6 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 21.98 | 45.61 | 14.16 | 319.42 | 0.3501 | -24.0 | -14.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
