SDO HMI 2014-08-19 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.89 | 282.30 | 35.09 | 207.33 | 8.46 | 343.42 | -48.03 | 84.76 | 0.7408 | -737.4 | -298.6 | |
|
previous
or next observation for the same group /

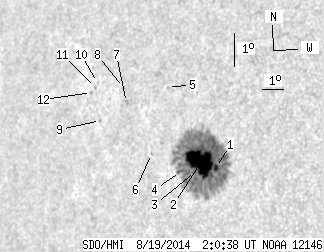

back to the solar disc SDO HMI 2014-08-19 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 273.84 | 1.69 | 200.56 | 8.35 | 344.27 | -47.19 | 84.94 | 0.7310 | -1101.0 | -330.3 | |
| 42.04 | -1.00 | 30.81 | -1.00 | 8.44 | 343.57 | -47.89 | 84.79 | 0.7392 | -1073.1 | 999999 | |
| 1.80 | -1.00 | 1.32 | -1.00 | 8.15 | 343.38 | -48.07 | 85.18 | 0.7414 | -556.9 | 999999 | |
| 1.71 | -1.00 | 1.27 | -1.00 | 8.09 | 342.70 | -48.76 | 85.23 | 0.7493 | -181.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 10.57 | 341.61 | -49.85 | 81.92 | 0.7612 | 442.0 | 346.9 | |
| 0.00 | 0.90 | 0.00 | 0.69 | 8.51 | 341.25 | -50.21 | 84.61 | 0.7655 | 356.0 | 420.8 | |
| 0.00 | 1.89 | 0.00 | 1.49 | 9.94 | 339.74 | -51.72 | 82.72 | 0.7817 | 637.0 | 583.1 | |
| 0.00 | 0.90 | 0.00 | 0.72 | 10.37 | 339.49 | -51.97 | 82.15 | 0.7843 | 580.0 | 559.9 | |
| 0.00 | 1.35 | 0.00 | 1.10 | 9.28 | 338.57 | -52.89 | 83.53 | 0.7943 | 499.0 | 398.7 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 10.40 | 338.15 | -53.30 | 82.10 | 0.7984 | 631.0 | 563.0 | |
| 0.00 | 1.08 | 0.00 | 0.89 | 10.24 | 338.09 | -53.37 | 82.30 | 0.7991 | 432.0 | 438.0 | |
| 0.00 | 1.17 | 0.00 | 0.96 | 10.07 | 337.92 | -53.54 | 82.51 | 0.8009 | 540.0 | 455.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
