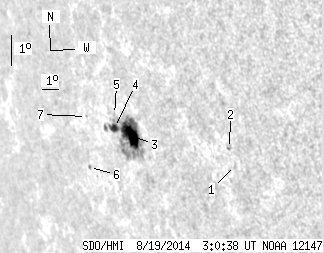

SDO HMI 2014-08-19 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.26 | 95.61 | 30.36 | 99.13 | -9.52 | 331.48 | -59.42 | 104.77 | 0.8799 | 621.3 | 195.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 1.19 | -9.88 | 337.36 | -53.54 | 106.85 | 0.8301 | 349.0 | 326.5 | |
| 0.00 | 1.62 | 0.00 | 1.43 | -9.37 | 337.17 | -53.74 | 106.19 | 0.8306 | 639.0 | 544.9 | |
| 24.22 | 89.67 | 25.00 | 93.20 | -9.53 | 331.56 | -59.34 | 104.80 | 0.8794 | 730.5 | 193.9 | |
| 5.04 | -3.00 | 5.36 | -3.00 | -9.38 | 330.62 | -60.29 | 104.39 | 0.8866 | 466.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.14 | -8.96 | 330.74 | -60.17 | 103.96 | 0.8849 | 357.0 | 352.2 | |
| 0.00 | 1.35 | 0.00 | 1.56 | -10.86 | 328.50 | -62.40 | 105.49 | 0.9049 | -494.0 | -339.1 | |
| 0.00 | 0.54 | 0.00 | 0.61 | -9.22 | 328.87 | -62.04 | 103.80 | 0.8996 | 354.0 | 326.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
