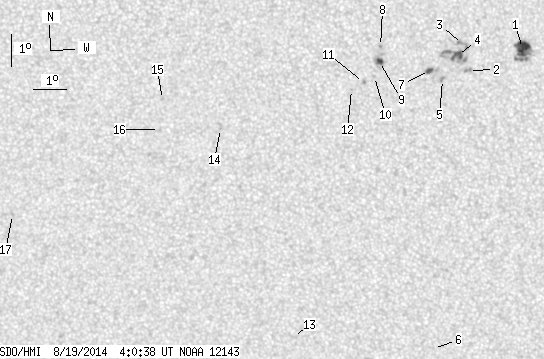

SDO HMI 2014-08-19 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.49 | 89.39 | 12.38 | 45.31 | -4.76 | 30.82 | 0.46 | 183.56 | 0.2074 | 420.4 | 432.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.86 | 28.36 | 7.51 | 14.33 | -4.09 | 33.32 | 2.96 | 195.21 | 0.1971 | 1185.3 | 686.8 | |
| 0.00 | 3.06 | 0.00 | 1.55 | -4.76 | 31.67 | 1.32 | 186.50 | 0.2031 | 753.0 | 726.7 | |
| 0.00 | 6.30 | 0.00 | 3.18 | -3.96 | 31.49 | 1.13 | 186.01 | 0.1890 | 895.0 | 856.0 | |
| 5.04 | 23.05 | 2.55 | 11.64 | -4.30 | 31.34 | 0.98 | 185.05 | 0.1946 | 1217.4 | 820.0 | |
| 0.00 | 2.43 | 0.00 | 1.23 | -5.04 | 30.88 | 0.52 | 182.53 | 0.2068 | 933.0 | 775.9 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -13.54 | 30.60 | 0.25 | 180.69 | 0.3497 | -4.0 | -13.3 | |
| 1.98 | 5.04 | 1.00 | 2.55 | -4.76 | 30.49 | 0.13 | 180.64 | 0.2018 | 1069.6 | 827.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -4.02 | 29.00 | -1.36 | 172.82 | 0.1905 | -1023.0 | -856.2 | |
| 2.61 | 9.09 | 1.32 | 4.60 | -4.48 | 28.97 | -1.39 | 172.95 | 0.1985 | -1213.2 | -812.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -4.95 | 28.81 | -1.55 | 172.49 | 0.2067 | -817.0 | -478.6 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -5.13 | 28.48 | -1.88 | 171.02 | 0.2107 | 937.0 | 817.8 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -5.35 | 28.11 | -2.25 | 169.50 | 0.2154 | 778.0 | 586.8 | |
| 0.00 | 2.34 | 0.00 | 1.24 | -13.17 | 26.24 | -4.12 | 168.43 | 0.3503 | -7.0 | -3.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -6.60 | 24.09 | -6.27 | 154.89 | 0.2568 | -898.0 | -722.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -5.72 | 22.32 | -8.04 | 147.22 | 0.2582 | -822.0 | -517.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -6.65 | 22.21 | -8.15 | 148.75 | 0.2725 | -743.0 | -560.7 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -9.42 | 17.55 | -12.81 | 141.70 | 0.3544 | -785.0 | -648.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
