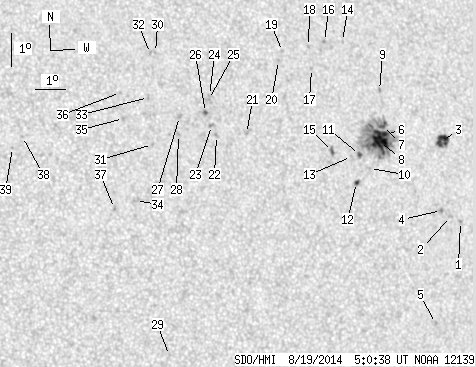

SDO HMI 2014-08-19 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.12 | 173.32 | 25.00 | 96.99 | 14.01 | 56.90 | 27.09 | 287.55 | 0.4648 | -341.3 | -284.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.88 | 11.34 | 60.62 | 30.81 | 280.72 | 0.5131 | -719.0 | -591.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 11.51 | 60.28 | 30.47 | 281.13 | 0.5084 | -681.0 | -601.3 | |
| 9.82 | 13.42 | 5.66 | 7.74 | 13.84 | 60.31 | 30.49 | 285.65 | 0.5137 | -947.6 | -673.4 | |
| 0.00 | 2.07 | 0.00 | 1.19 | 11.71 | 59.98 | 30.17 | 281.59 | 0.5044 | -886.0 | -721.9 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 8.30 | 59.42 | 29.61 | 274.80 | 0.4926 | -671.0 | -604.2 | |
| 3.24 | 106.53 | 1.83 | 60.09 | 14.14 | 58.30 | 28.49 | 286.98 | 0.4855 | -867.0 | -537.6 | |
| 2.34 | -6.00 | 1.33 | -6.00 | 14.42 | 58.23 | 28.42 | 287.57 | 0.4854 | -854.2 | 999999 | |
| 24.76 | -6.00 | 13.98 | -6.00 | 13.94 | 58.06 | 28.24 | 286.66 | 0.4814 | -1118.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 15.49 | 58.28 | 28.47 | 289.70 | 0.4899 | -683.0 | -597.8 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 13.14 | 57.60 | 27.79 | 285.18 | 0.4723 | -716.0 | -618.1 | |
| 1.17 | -6.00 | 0.66 | -6.00 | 13.58 | 57.30 | 27.49 | 286.23 | 0.4692 | -973.5 | 999999 | |
| 1.26 | 2.25 | 0.70 | 1.26 | 12.73 | 57.09 | 27.28 | 284.52 | 0.4637 | 690.3 | 499.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 13.54 | 57.01 | 27.20 | 286.25 | 0.4648 | -753.0 | -523.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 17.07 | 57.20 | 27.39 | 293.42 | 0.4812 | -732.0 | -609.7 | |
| 0.90 | 3.15 | 0.50 | 1.75 | 13.72 | 56.37 | 26.56 | 286.93 | 0.4559 | 755.4 | 510.7 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 17.10 | 56.56 | 26.75 | 293.88 | 0.4724 | -785.0 | -700.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.30 | 55.98 | 26.17 | 292.60 | 0.4604 | -774.0 | -641.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.98 | 55.98 | 26.16 | 294.01 | 0.4636 | -650.0 | -484.8 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 16.87 | 55.04 | 25.23 | 294.42 | 0.4499 | -639.0 | -529.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 16.60 | 54.87 | 25.05 | 293.97 | 0.4460 | -719.0 | -589.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 14.42 | 53.48 | 23.67 | 290.04 | 0.4156 | 692.0 | 557.5 | |
| 0.00 | 1.98 | 0.00 | 1.07 | 14.41 | 52.46 | 22.64 | 290.68 | 0.4003 | 651.0 | 491.0 | |
| 0.00 | 2.43 | 0.00 | 1.31 | 14.72 | 52.32 | 22.51 | 291.53 | 0.3997 | 763.0 | 626.6 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 15.64 | 52.36 | 22.55 | 293.68 | 0.4049 | 678.0 | 454.9 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 15.52 | 52.31 | 22.50 | 293.44 | 0.4035 | 631.0 | 521.3 | |
| 0.63 | 1.89 | 0.34 | 1.02 | 15.13 | 52.16 | 22.35 | 292.62 | 0.3994 | 901.3 | 779.6 | |
| 0.00 | 2.70 | 0.00 | 1.45 | 15.04 | 51.27 | 21.46 | 293.12 | 0.3858 | 830.0 | 660.4 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 14.49 | 51.18 | 21.37 | 291.83 | 0.3816 | 759.0 | 632.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 7.79 | 50.36 | 20.55 | 273.99 | 0.3502 | -4.0 | 5.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 17.04 | 50.68 | 20.87 | 298.47 | 0.3892 | 685.0 | 468.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 14.23 | 50.28 | 20.47 | 291.86 | 0.3668 | 816.0 | 659.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 17.02 | 50.51 | 20.70 | 298.59 | 0.3866 | 879.0 | 734.1 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 15.67 | 50.29 | 20.48 | 295.53 | 0.3749 | 840.0 | 689.9 | |
| 0.00 | 4.68 | 0.00 | 2.47 | 12.54 | 49.57 | 19.75 | 287.87 | 0.3481 | 7.0 | 8.8 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 15.06 | 49.39 | 19.58 | 294.84 | 0.3581 | 828.0 | 630.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 15.86 | 49.37 | 19.56 | 296.93 | 0.3628 | 774.0 | 642.3 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 12.33 | 48.86 | 19.04 | 287.77 | 0.3362 | 930.0 | 742.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 14.63 | 46.02 | 16.21 | 297.45 | 0.3057 | 722.0 | 512.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 14.31 | 45.67 | 15.86 | 296.93 | 0.2983 | 772.0 | 514.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
