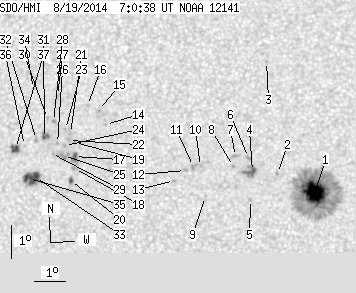

SDO HMI 2014-08-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.75 | 295.43 | 27.11 | 148.75 | 16.20 | 26.36 | -2.36 | 11.05 | 0.1764 | -117.7 | -202.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.52 | 199.47 | 15.81 | 100.06 | 15.86 | 28.56 | -0.16 | 0.95 | 0.1578 | -1452.9 | -403.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 16.45 | 27.39 | -1.33 | 7.56 | 0.1694 | -998.0 | -793.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 19.91 | 27.01 | -1.70 | 7.03 | 0.2292 | -781.0 | -636.6 | |
| 2.70 | 10.45 | 1.36 | 5.25 | 16.51 | 26.60 | -2.12 | 11.89 | 0.1727 | -1185.1 | -889.9 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 15.65 | 26.54 | -2.17 | 13.38 | 0.1584 | -682.0 | -409.7 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 16.94 | 26.47 | -2.25 | 12.06 | 0.1804 | -899.0 | -758.3 | |
| 0.00 | 3.15 | 0.00 | 1.59 | 16.97 | 26.05 | -2.66 | 14.15 | 0.1825 | -735.0 | -626.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.66 | 26.00 | -2.72 | 14.90 | 0.1776 | -880.0 | -704.0 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 15.73 | 25.12 | -3.59 | 21.26 | 0.1671 | -843.0 | -667.4 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 16.65 | 24.95 | -3.77 | 20.22 | 0.1829 | -842.0 | -700.2 | |
| 0.00 | 3.42 | 0.00 | 1.72 | 16.65 | 24.73 | -3.99 | 21.31 | 0.1843 | -964.0 | -781.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 16.53 | 24.48 | -4.24 | 22.78 | 0.1839 | -817.0 | -641.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 16.22 | 24.13 | -4.58 | 25.14 | 0.1814 | -904.0 | -713.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.92 | 21.88 | -6.83 | 30.37 | 0.2249 | 926.0 | 717.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.35 | 21.64 | -7.08 | 30.23 | 0.2333 | 808.0 | 694.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.50 | 21.28 | -7.44 | 31.13 | 0.2385 | 772.0 | 660.2 | |
| 1.89 | 6.57 | 0.96 | 3.34 | 16.92 | 20.93 | -7.79 | 36.34 | 0.2198 | 1056.5 | 863.7 | |
| 0.00 | 2.70 | 0.00 | 1.37 | 16.55 | 20.94 | -7.77 | 37.35 | 0.2147 | 1000.0 | 822.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 17.35 | 20.91 | -7.81 | 35.22 | 0.2259 | 949.0 | 795.5 | |
| 1.26 | 2.34 | 0.64 | 1.19 | 16.18 | 20.83 | -7.89 | 38.86 | 0.2110 | 1077.6 | 897.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.63 | 20.77 | -7.95 | 34.96 | 0.2310 | 1017.0 | 855.3 | |
| 0.00 | 2.25 | 0.00 | 1.15 | 17.41 | 20.71 | -8.00 | 35.71 | 0.2286 | 921.0 | 749.3 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 17.75 | 20.60 | -8.11 | 35.19 | 0.2343 | 756.0 | 630.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.25 | 20.59 | -8.12 | 36.54 | 0.2277 | 910.0 | 777.2 | |
| 0.00 | 6.39 | 0.00 | 3.25 | 16.95 | 20.57 | -8.14 | 37.46 | 0.2238 | 1020.0 | 867.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 17.31 | 20.37 | -8.35 | 37.12 | 0.2308 | 959.0 | 782.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.80 | 20.30 | -8.42 | 33.61 | 0.2516 | 743.0 | 634.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 17.99 | 20.21 | -8.51 | 35.85 | 0.2414 | 916.0 | 775.6 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 17.00 | 20.19 | -8.53 | 38.57 | 0.2285 | 659.0 | 668.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.08 | 20.01 | -8.71 | 36.23 | 0.2446 | 825.0 | 586.2 | |
| 0.63 | 4.68 | 0.32 | 2.39 | 17.49 | 19.94 | -8.78 | 37.99 | 0.2375 | 1075.0 | 887.6 | |
| 0.00 | 2.52 | 0.00 | 1.29 | 17.42 | 19.68 | -9.03 | 38.95 | 0.2393 | 855.0 | 619.2 | |
| 6.12 | 19.18 | 3.11 | 9.75 | 16.25 | 19.71 | -9.01 | 42.30 | 0.2244 | 1161.3 | 695.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.00 | 19.51 | -9.21 | 35.48 | 0.2619 | 735.0 | 590.7 | |
| 5.67 | -33.00 | 2.89 | -33.00 | 16.22 | 19.48 | -9.23 | 43.09 | 0.2265 | 1011.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.23 | 19.31 | -9.41 | 40.60 | 0.2410 | 799.0 | 526.7 | |
| 3.96 | 6.12 | 2.02 | 3.13 | 17.14 | 19.02 | -9.69 | 41.71 | 0.2429 | 978.3 | 739.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
