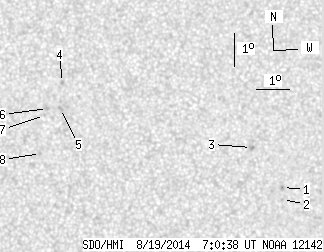

SDO HMI 2014-08-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.80 | 0.00 | 5.37 | 9.04 | 24.48 | -4.24 | 170.84 | 0.0874 | 198.9 | 134.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.39 | 29.08 | 0.36 | 327.72 | 0.0117 | -1105.0 | -935.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 7.03 | 29.07 | 0.36 | 299.33 | 0.0072 | -870.0 | -677.8 | |
| 0.00 | 1.98 | 0.00 | 0.98 | 8.61 | 28.13 | -0.59 | 18.14 | 0.0328 | -895.0 | -844.8 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 10.55 | 22.28 | -6.44 | 59.24 | 0.1288 | 963.0 | 754.1 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 9.75 | 22.23 | -6.48 | 65.03 | 0.1233 | 898.0 | 757.6 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 9.75 | 21.83 | -6.89 | 66.32 | 0.1296 | 944.0 | 680.8 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 9.54 | 21.74 | -6.97 | 68.11 | 0.1296 | 795.0 | 598.1 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.38 | 21.64 | -7.08 | 77.06 | 0.1256 | 861.0 | 708.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
